Moovit Matrix 50 Set, steel, white, profile height 92mm, length 500mm: Hafele part# 551.54.725
Product Information
Description

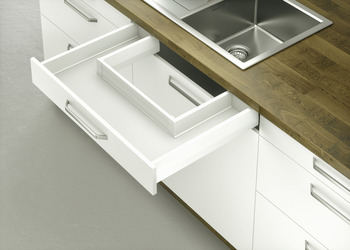

Hafele 551.54.725 Hafele Matrix Box P50, drawer side height 92 mm, load bearing capacity 50 kg
White, length: 500 mm (20")Load bearing capacity : (110 lbs.) 50 kg Height : (3 5/8") 92 mm Type of closing : Soft & Silent Material : Steel Finish : Drawer sides: Epoxy coated
Cabinet rail: GalvanizedSupplied with : 1 left and 1 right drawer slide
1 left and 1 right cabinet profile
2 cover caps
Optional items:
Drawer Front Fixing Bracket, Hafele Matrix Box P
Stabilizing Plate, Front panel stabilising plate, Hafele Matrix Box P
Spacer, For Hafele Matrix Box P internal drawer and internal pull out
Cover Cap, Hafele MX
Pressomat Drawer Press, for Assembly of Hafele MX
Panel holder, Hafele Matrix Box P
Drilling Jig, Hafele Matrix Box P
Insertion Tool, Hafele MX
Marking Gauge, Hafele Matrix Box P
Rail Drilling Jig, Hafele Matrix Box PSpecifications
