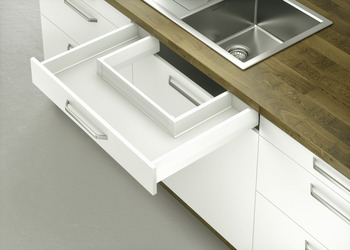

Hafele 551.54.723 Matrix Box P50, drawer side height 92mm, load bearing capacity 50 kg White, length: 400mm (16)

Product Information

• Description

  Manufacturer: Hafele
  Item: 551.54.723

  Product Title: Drawer side runner system, Häfele Matrix Box P50, drawer side height (3 5/8") 92 mm, load bearing capacity (110 lbs) 50 kg, Load bearing capacity 50 kg, Häfele Matrix Box P50 drawer set, drawer side height 92 mm, White, length: 400 mm (15 3/4")

  Category: Drawer side runner system, Häfele Matrix Box P50, drawer side height (3 5/8") 92 mm, load bearing capacity (110 lbs) 50 kg, Load bearing capacity 50 kg, Häfele Matrix Box P50 drawer set, drawer side height 92 mm

  Item Details …

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs

  - Material : Steel

  - Height (inch) : 3 5/8"

  - Type of pull out : Full extension, with integrated Smuso soft closing mechanism and self closing mechanism, with integrated rear panel fitting

  - Drawer side height : 92.00 mm

  - Front fixing brackets : not included

  - Adjustment facility : Convenient height and side adjustment from above when installedHeight adjustment ± 2.5 mmSide adjustment ± 1.5 mm

  - Installation : Mounting and disassembly of the panel without tools

  - Order reference

  - Please order recommended cylindrical head screw Cat. No. 013.20.930 for runner installation separately.

  - Front fixing brackets for drawer not included in scope of delivery, please order separately.

  - Supplied with:

  - 1 left and 1 right drawer side with rear panel fitting

  - 1 left and 1 right cabinet runner

  - 1 left and 1 right cover cap with Häfele logo relief

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Matrix Box P 92 / 115

  LGA certificate Matrix Box P 50 kg

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.8



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.4-8.4.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Euro screw, with Special Cylinder Head, #2 Pozi Drive, Bulk Pack
  • Drawer Front Fixing Bracket, Häfele Matrix Box P
  • Panel holder, for Internal Standard Drawer, Häfele Matrix
  • Front Panel Holder, for Internal Deep Drawer, Häfele Matrix
  • Stabilizing Plate, Front panel stabilising plate, Häfele Matrix Box P
  • Spacer, For Häfele Matrix Box P internal drawer and internal pull out
  • Replacement Cover Cap, for Häfele Matrix Box P Plus drawer sides
  • Drawer press, Pressomat 200, for assembly of Moovit drawers
  • Panel holder, Häfele Matrix Box P
  • Insertion Tool, Häfele Matrix Box P
  • Marking Gauge, Häfele Matrix Box P
  • Gallery Rail, Round, Häfele Matrix Box P
  • Gallery Rail, Rectangular, Häfele Matrix Box P
  • Cross Front Rail, Round, Häfele Matrix Box P
  • Cross Rail Holder, Round, Häfele Matrix Box P
  • Cross rail, Rectangular
  • Cross rail holder, Rectangular, Häfele Matrix Box P
