Hafele 551.54.325 Matrix Box P50, drawer side height 92mm, load bearing capacity 50 kg Anthracite, length: 500mm (19 11/16")

Product Information

• Description

  Manufacturer: Hafele
  Item: 551.54.325

  Product Title: Drawer side runner system, Häfele Matrix Box P50, drawer side height (3 5/8") 92 mm, load bearing capacity (110 lbs) 50 kg, Load bearing capacity 50 kg, Häfele Matrix Box P50 drawer set, drawer side height 92 mm, Anthracite, length: 500 mm (19 11/16")

  Category: Drawer side runner system, H�fele Matrix Box P50, drawer side height (3 5/8") 92 mm, load bearing capacity (110 lbs) 50 kg, Load bearing capacity 50 kg, H�fele Matrix Box P50 drawer set, drawer side height 92 mm

  Item Details �

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs

  - Material : Steel

  - Height (inch) : 3 5/8"

  - Type of pull out : Full extension, with integrated Smuso soft closing mechanism and self closing mechanism, with integrated rear panel fitting

  - Drawer side height : 92.00 mm

  - Front fixing brackets : not included

  - Adjustment facility : Convenient height and side adjustment from above when installedHeight adjustment ± 2.5 mmSide adjustment ± 1.5 mm

  - Installation : Mounting and disassembly of the panel without tools

  - Order reference

  - Please order recommended cylindrical head screw Cat. No. 013.20.930 for runner installation separately.

  - Front fixing brackets for drawer not included in scope of delivery, please order separately.

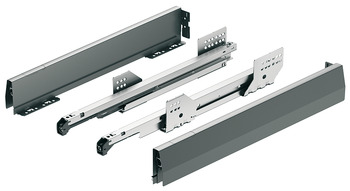

  - Supplied with:

  - 1 left and 1 right drawer side with rear panel fitting

  - 1 left and 1 right cabinet runner

  - 1 left and 1 right cover cap with Häfele logo relief

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Matrix Box P 92 / 115

  LGA certificate Matrix Box P 50 kg

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.8



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.4-8.4.pdf
