Hafele 550.47.761 Front Panel Kits for Grass Vionaro, for Side Height: (7 1/7) 185 mm For screw fixing, white

Product Information

• Description

  Manufacturer: Hafele
  Item: 550.47.761

  Product Title: Front Panel Kits for Grass Vionaro, for Side Height: (7 1/4") 185 mm, For screw fixing, white

  Category: Front Panel Kits for Grass Vionaro, for Side Height: (7 1/4") 185 mm,

  Item Details …

  - Installation : For screw fixing

  - Drawer length : 7 1/4"

  - Material : Aluminum

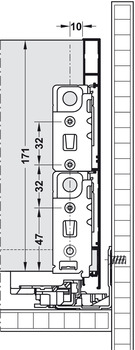

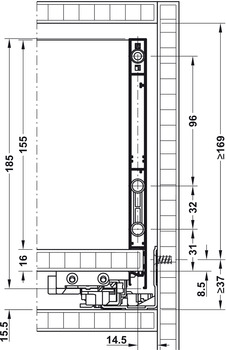

  - Installation reference : Installation dimensions: the specifications for internal installation height and installation dimensions of the rear panel are identical to those of the pull out for door front fixing with drawer side height of 185 mm.min. internal installation depth = nominal length + 12 mm

  - Model series : Vionaro

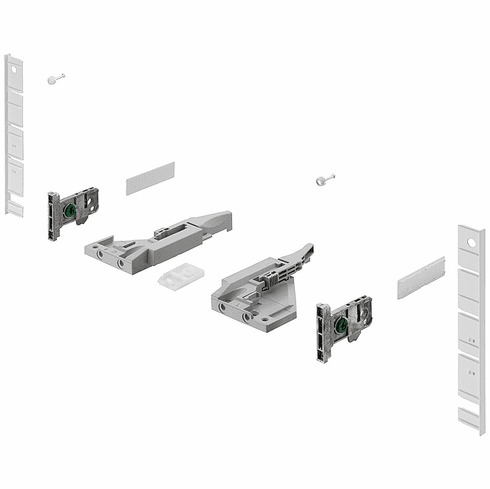

  - Supplied with:

  - 2 Cover Caps

  - Front locking device set, left and right

  - 2 Front connectors

  - 4 Front connector screws

  - Front bottom connector

  - 2 End caps

  - 2 Front stabilizers with 8 mm dowel
