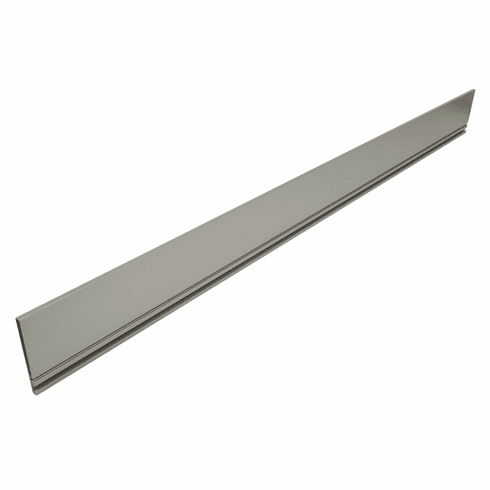

Hafele 550.46.320 Front Panel for Grass Vionaro, For Vionaro H89 internal drawer Graphite

Product Information

• Description

  Manufacturer: Hafele
  Item: 550.46.320

  Product Title: Front Panel for Grass Vionaro, for Side Height: (3 1/2") 89 mm, for Vionaro H89 internal drawer, Graphite

  Category: Front Panel for Grass Vionaro, for Side Height: (3 1/2") 89 mm,

  Item Details …

  - Color coordinated front panel profile

  - Cubist design with 90° angles

  - Slimline 13 mm (1/2�) side width

  - Bottom panel is cut to size without notching

  - Length : 1,160.00 mm

  - Length (inch) : 45 11/16"

  - For cabinet width : 1,200.00 mm

  - Thickness (inch) : 5/16"

  - Panel height : 4 3/32"

  - Suitable for : Drawer side runner system Grass

  - Area of application : Allows Vionaro drawers to be used in an internal drawer application

  - Material : Aluminum

  - Installation : For cutting to size: Internal cabinet width – 8 mmfor screw fixing to front brackets

  - For side panel thickness : 16 mm

  - Height : 104.00 mm

  - Height (inch) : 3 1/2"

  - Installation reference : Color coordinated front panel profileCubist design with 90° anglesSlimline 13 mm (1/2�) side widthBottom panel is cut to size without notching

  - Order reference

  - Cut dimension is determined by ICW-8 mm (5/16�)


  Additional Information …

  For cutting to size: Internal cabinet width – 8 mmfor screw fixing to front brackets
