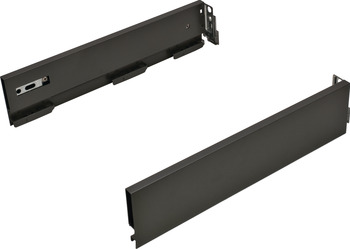

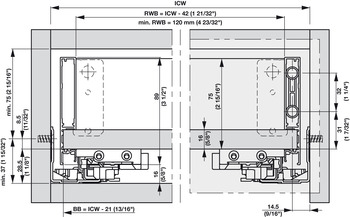

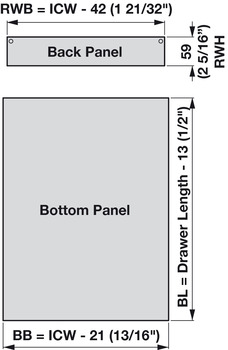

Hafele 550.41.339 Grass Vionaro Drawer System, Side Height: (3 1/2") 89 mm Graphite, drawer length: 381 mm (15")

Product Information

• Description

  Manufacturer: Hafele
  Item: 550.41.339

  Product Title: Grass Vionaro Drawer System, Side Height: (3 1/2") 89 mm, Graphite, drawer length: 381 mm (15")

  Category: Grass Vionaro Drawer System, Side Height: (3 1/2") 89 mm,

  Item Details �

  - Vionaro only works with Dynapro 16 2-D, please order separately.

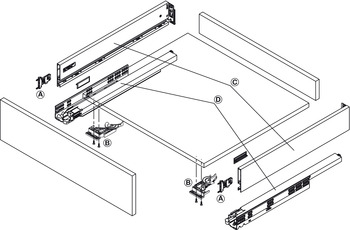

  - The complete drawer system for modern cabinetry

  - 90° straight corners and sides

  - Slim 13 mm (1/2”) width side

  - Integrated height and side adjustment, tilt adjustment at back

  - Tool free assembly

  - Optional 4D depth adjustment

  - For use only with Dynapro concealed undermount slides

  - Material : Steel

  - Height (inch) : 25 1/4"

  - Area of application : For face frame and frameless cabinets

  - Drawer side height : 89.00 mm

  - Order reference

  - Please order separately:

  - 2 x locking device with flange (a left and right)

  - 1 x marking jig

  - 1 x Grass Dynapro full extension slide

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.27



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.10-8.11.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Locking Devices with Flange, for Grass Vionaro Drawer System (choose one):


  • Right Left Pairs

    433.19.007 433.19.008 433.19.025

    Click to order Click to order Click to order



  Adapter Set for Grass Vionaro Drawer System, for 89 mm (3 1/2") Side Height (choose one):


  • Graphite Silver gray White

    550.47.350 550.47.550 550.47.750

    Click to order Click to order Click to order



  Grass Dynapro 16 Full Extension Slide, 100 lbs. (choose one):


  • 2D adjustment, 9" length, model F130135013604 3D adjustment, 9" length, model F130135003604 2D adjustment, 12" length, model F130135014604 3D adjustment, 12" length, model F130135004604 2D adjustment, 15" length, model F130135015204U 3D adjustment, 15" length, model F130135005604 2D adjustment, 18" length, model F130135016204U 3D adjustment, 18" length, model F130135006204U 2D adjustment, 21" length, model F130135019204U 3D adjustment, 21" length, model F130135007204U

    433.19.424 433.19.425 433.19.432 433.19.433 433.19.440 433.19.441 433.19.447 433.19.448 433.19.455 433.19.456

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Marking Jig, for Grass Vionaro Drawer System (choose one):


  • For drawer side height 89 mm and 185 mm

    550.47.931

    Click to order



  Optional Accessories:



  • Front Panel Kits for Grass Vionaro, for Side Height: (3 1/2") 89 mm
  • Front Panel for Grass Vionaro, for Side Height: (3 1/2") 89 mm
