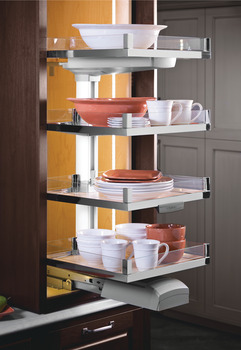

Hafele 549.64.215 Tray Set (of Four), for LAVIDO Pantry Pull-Out Chrome/Maple, 449 mm (17 11/16")

Product Information

• Description

  Manufacturer: Hafele
  Item: 549.64.215

  Product Title: Tray Set (of Four), for LAVIDO Pantry Pull-Out, Chrome/Maple, 449 mm (17 11/16")

  Category: Tray Set (of Four), for LAVIDO Pantry Pull-Out,

  Item Details …

  - Infinite height adjustment feature; simply lift a lever to unlock the shelf for repositioning

  - Width dimensions are actual tray widths

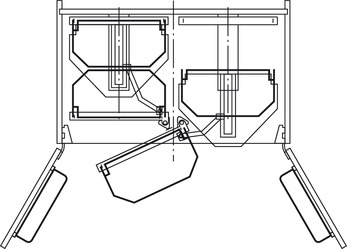

  - This extremely flexible pantry storage solution provides high visibility and easy-to-reach access from three sides

  - Area of application : For use with a hinged door–165º hinge opening recommended, 90º opening minimum

  - Material : Shelf: MelamineSurround: Steel

  - Note on load bearing capacity : 20 kg (44 lbs.) per shelf / 130 kg (286 lbs.) total

  - Supplied with:

  - Tray with integrated top runner, 3 Trays, 4 Accessory boxes, Support bracket,

  - Fixing brace, Handle for mounting to the bottom of tray

  - Order reference

  - Optional to add individual trays – recommended to use 5 trays for pantries from 1448 – 1956 mm (57" – 77") and 6 trays over 1956 mm (77"). Required to order 1 tray set, additional individual trays can be ordered separately

  - Supplied with:

  - Tray with integrated top runner, 3 Trays, 4 Accessory boxes, Support bracket,

  - Fixing brace, Handle for mounting to the bottom of tray


  Additional Information …

  There are 3 components you need to order for the Lavido Pantry:A. Pantry FrameB. TraysC. Full Extension Runner
