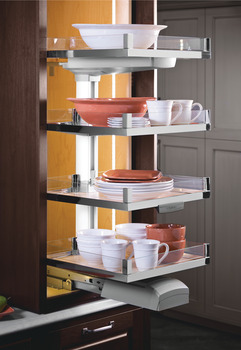

Hafele 549.60.990 Full Extension Runner, for LAVIDO Pantry Pull-Out

Product Information

• Description

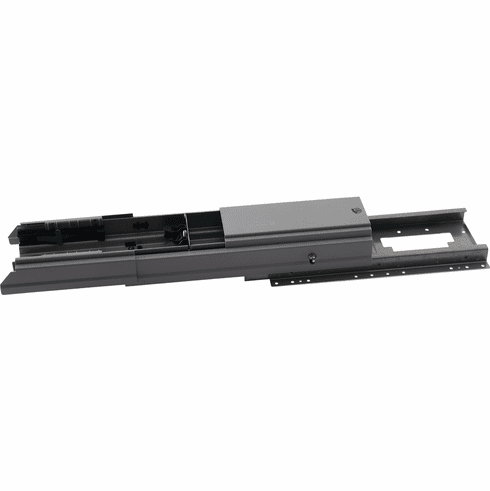

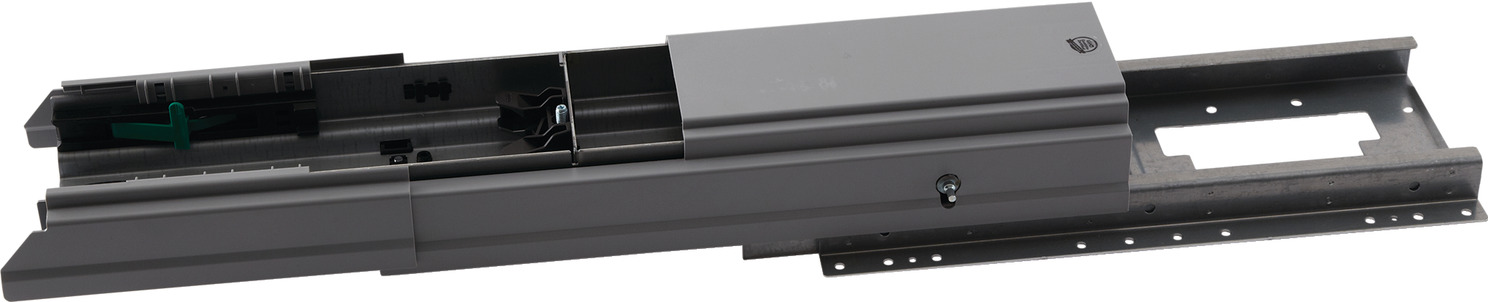

  Hafele 549.60.990 Full Extension Runner, for LAVIDO Pantry Pull-Out




  Features : Soft open and soft close

  Extension length : (18 1/2��) 470 mm

  Internal cabinet depth : Min: (19 11/16") 500 mm

  Type of pull out : Full extension

  Load bearing capacity : Per shelf (44 lbs) 19.5 kg /Total (286 lbs) 129.5 kg

  Adjustment : Infinite height adjustment feature on shelves - simply lift a lever to unlock the shelf for repositioning

  Application : For use with a hinged door - 165� hinge opening recommended, 90� opening minimum
  For 18�� to 24�� Nominal Cabinet Widths

  Material : Steel
  Plastic

  Finish : Silver



  Order reference :

  There are 3 components you need to order for the Lavido Pantry:

  A. Pantry Frame

  B. Trays

  C. Full Extension Runner





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.44-3.45.pdf

  Hafele 549.60.990, 549-60-990, 54960990, 549.60
