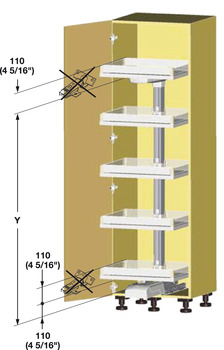

Hafele 549.60.903 Lavido Frame Set, 930mm, top shelf height 40"

Product Information

• Description

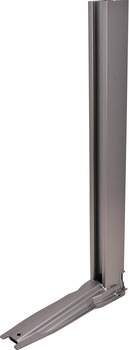

  Hafele 549.60.903 Pantry Frame, for LAVIDO Pantry Pull-Out




  Features : Soft open and soft close

  Extension length : (18 1/2€) 470 mm

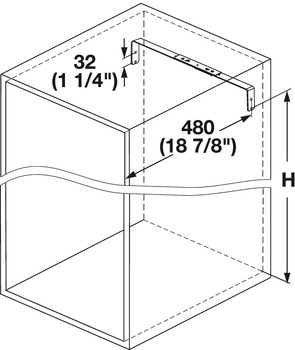

  Internal cabinet depth : Min: (19 11/16") 500 mm

  Type of pull out : Full extension

  Load bearing capacity : Per shelf (44 lbs) 19.5 kg /Total (286 lbs) 129.5 kg

  Adjustment : Infinite height adjustment feature on shelves - simply lift a lever to unlock the shelf for repositioning

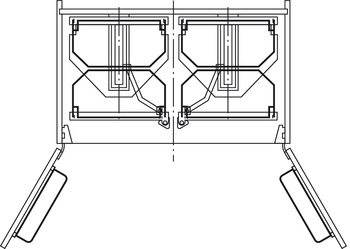

  Application : For use with a hinged door - 165° hinge opening recommended, 90° opening minimum
  For 18€ to 24€ Nominal Cabinet Widths

  For Cabinet Width : 500-600 mm

  Material : Steel

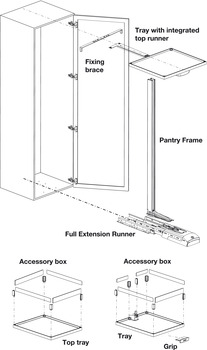

  Optional items:
  Individual Adjustable Tray, for LAVIDO Pantry Pull-Out
  Tray Set (of Four), for LAVIDO Pantry Pull-Out
  Full Extension Runner, for LAVIDO Pantry Pull-Out
  Optional Touch Auto Opener, for LAVIDO Pantry Pull-Out
  Tray Set (of Four), for LAVIDO Pantry Pull-Out
  Individual Adjustable Tray, for LAVIDO Pantry Pull-Out
