Hafele 545.49.803 Base Pull-Out, Elemental Wood

Product Information

• Description

  Manufacturer: Hafele
  Item: 545.49.803

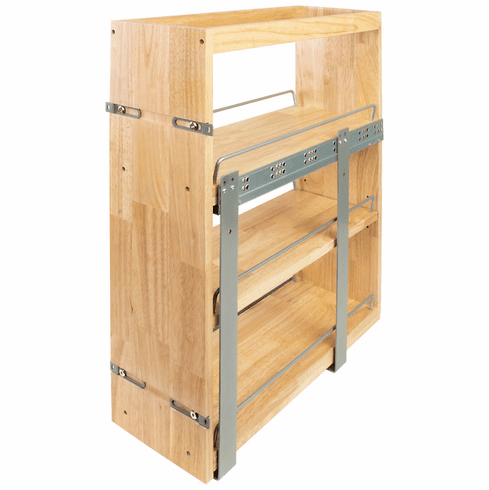

  Product Title: Base Pull-Out, Elemental Wood, 11 5/8" width

  Category: Base Pull-Out, Elemental Wood

  Item Details …

  - Offset 50 kg (110 lbs) undermount soft close slides

  - Height : 679.00 mm

  - Height (inch) : 26 3/4"

  - Depth : 571.00 mm

  - Depth (inch) : 21 1/2"

  - Material : Rubberwood

  - Soft closing mechanism : Yes

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Base Cabinet Pull-Out Mounting Instructions

  Econo Pullout Assembly CAD Drawing

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.75E



• Brand PDF Catalogs
