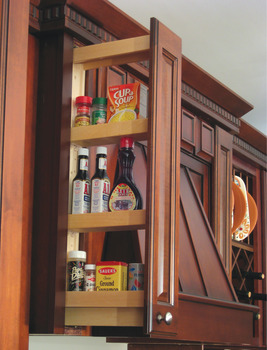

Hafele 545.47.268 Wall Filler Pull-out, maple, 42" x 6" X 11.25"

Product Information

• Description

  Manufacturer: Hafele
  Item: 545.47.268

  Product Title: Wall Filler Pull-Out, 6" x 42" (W x H)

  Category: Wall Filler Pull-Out,

  Item Details �

  - Version : With case

  - Type of pull out : Full extension

  - Material : Maple & Birch

  - Installation : Kitchen Cabinet Construction

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Wood Wall Filler Pull Out Mounting Instructions

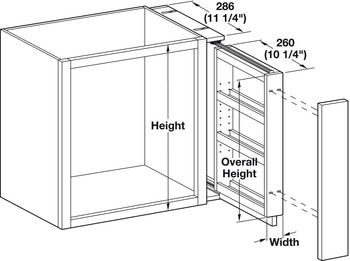

  545.47.268 Wall Filler Pullout Cad Drawing

  TCH_Furniture_Cabinetry_Hardware_2022|Page�3.81



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.50-3.50.pdf

  Hafele 545.47.268, 545-47-268, 54547268, 545.47


  Specifications/Hafele Catalog - Page# FC3.45: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs
