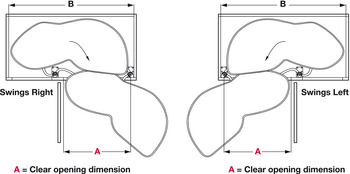

Hafele 541.32.160 LeMans II Set, for Blind Corner Cabinets Swings right, chrome/maple, 2 x 60 shape trays

Product Information

• Description

  Manufacturer: Hafele
  Item: 541.32.160

  Product Title: LeMans II Set, for Blind Corner Cabinets, with soft closing and self closing mechanisms, with non-slip effect, Swings right, chrome/maple, 2 x 60 shape trays

  Category: LeMans II Set, for Blind Corner Cabinets, with soft closing and self closing mechanisms, with non-slip effect

  Item Details …

  - Shelves height adjustable at intervals of (2") 50 mm via post and side profile

  - Soft & Silent

  - For internal cabinet height : ?546 mm

  - Load bearing capacity : 55 lbs

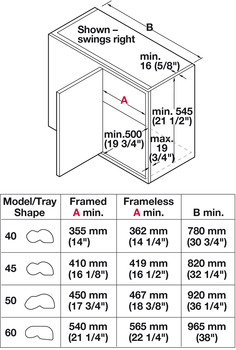

  - Internal cabinet height : Min. 21 1/2"

  - Height adjustment : Shelves are height adjustable every 2"

  - Area of application : For full height door and door/drawer applications

  - Version : 1057 sq. in capacityTray Size; 21"

  - Material : Shelf: MelamineSurround: Steel

  - Note on load bearing capacity : Max. per shelf

  - Supplied with:

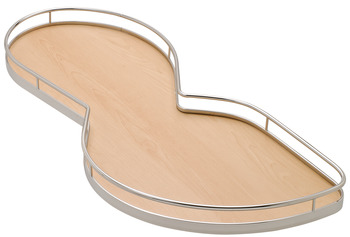

  - 2 trays

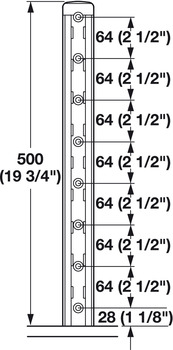

  - 1 post

  - 2 soft close

  - 1 mounting profile

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Lemans II Specs All Sizes

  Lemans II Complete Mounting Instructions

  Lemans II Model 45 CAD Drawing

  Lemans II Model 60 CAD Drawing

  Technical data sheet



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.4-3.5.pdf

  Hafele 541.32.160, 541-32-160, 54132160, 541.32


  Specifications/Hafele Catalog - Page# FC3.4: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Videos

  Play: Lemans Mounting Video


• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Highboard Post Kit, for LeMans II
  • Dampener, for LeMans II
  • Optional Filler Strip, for LeMans II
  • Angle Reduction Bracket, for LeMans II
