Hafele 541.28.360 LeMans II Set, Arena Style, right, chrome/ anthracite, adjustable post, 25 kg per tray (set includes: 2-60'er trays and posts)
Product Information
Description
Manufacturer: Hafele
Item: 541.28.360

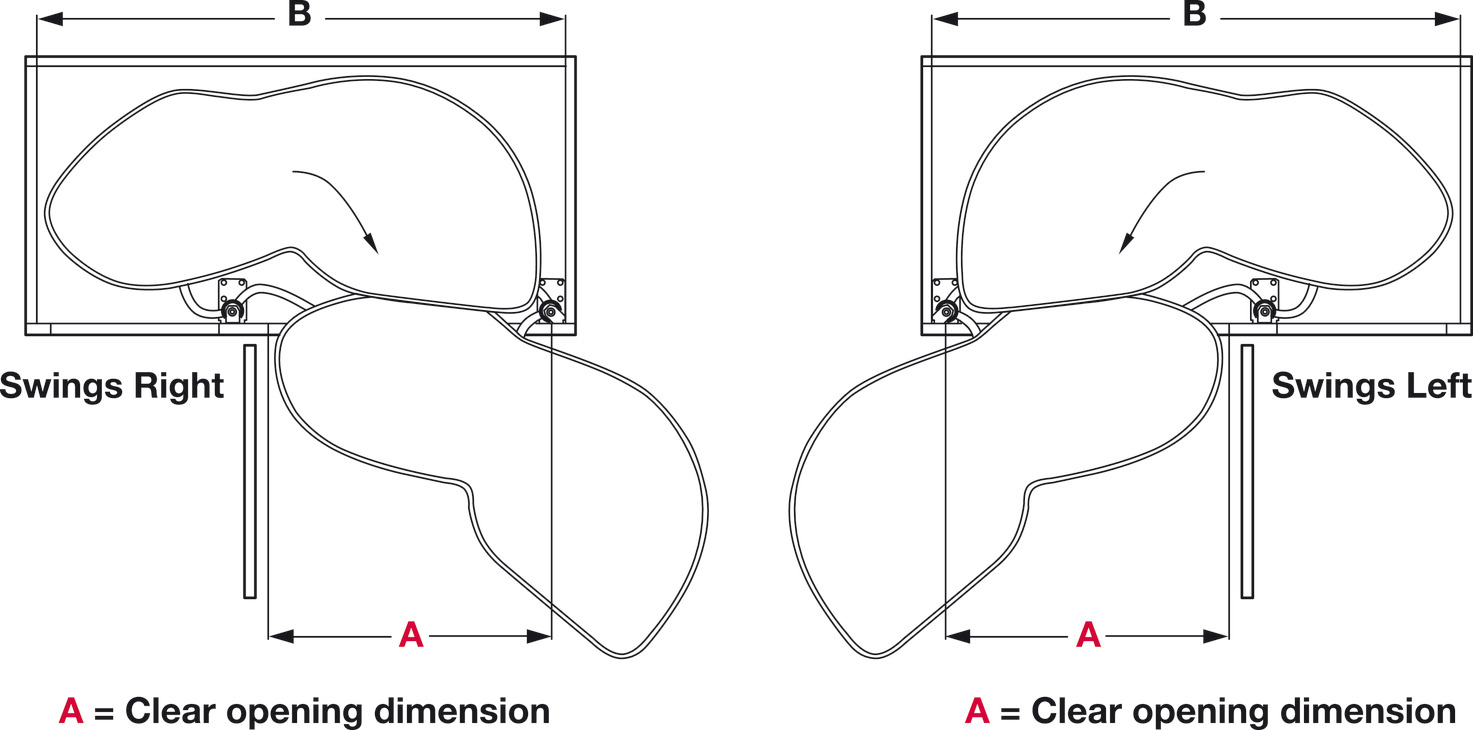

Product Title: LeMans II Set, for Blind Corner Cabinets, with soft closing and self closing mechanisms, with non-slip effect, Swings right, chrome/anthracite, 2 x 60 shape trays
Category: LeMans II Set, for Blind Corner Cabinets, with soft closing and self closing mechanisms, with non-slip effect
Item Details
- Shelves height adjustable at intervals of (2") 50 mm via post and side profile
- Soft & Silent

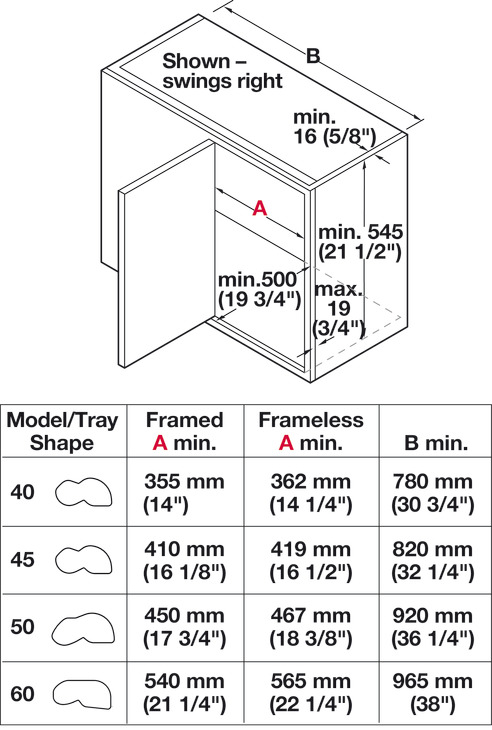

- For internal cabinet height : ?546 mm
- Load bearing capacity : 55 lbs
- Internal cabinet height : Min. 21 1/2"
- Height adjustment : Shelves are height adjustable every 2"
- Area of application : For full height door and door/drawer applications
- Version : 1057 sq. in capacityTray Size; 21"
- Material : Shelf: MelamineSurround: Steel
- Note on load bearing capacity : Max. per shelf
- Supplied with:

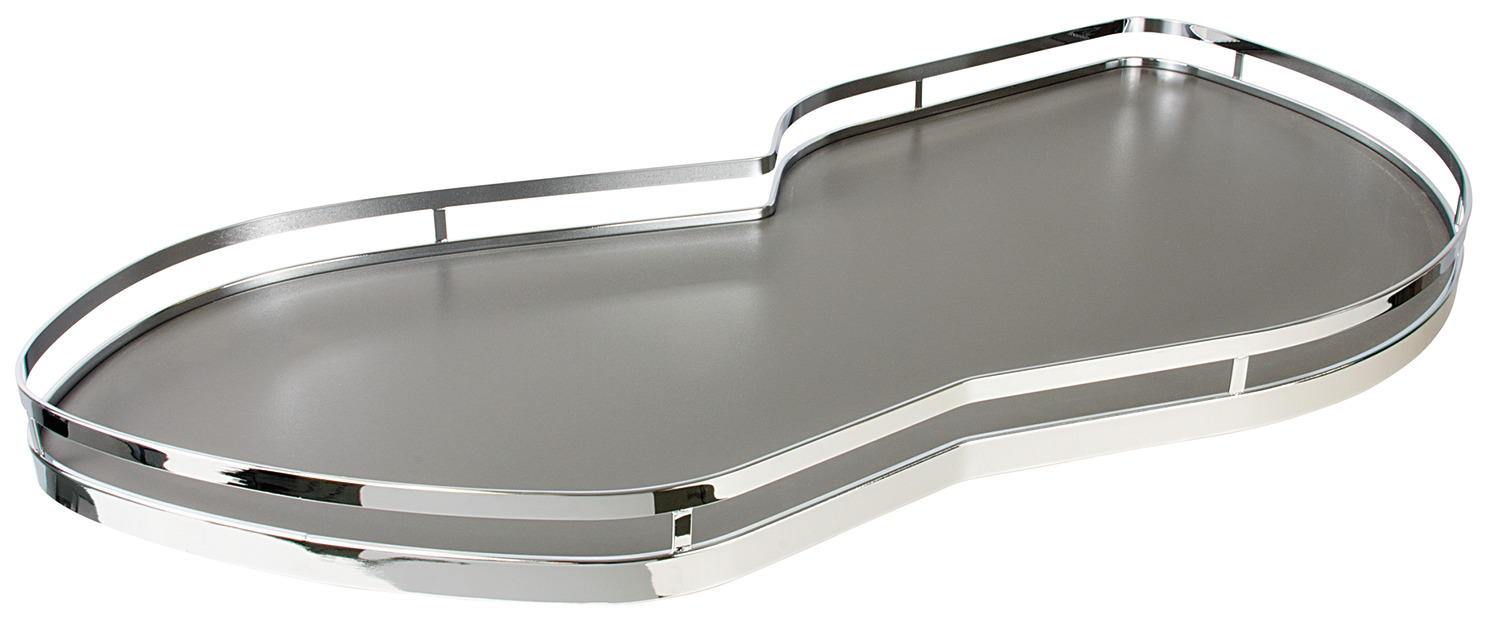

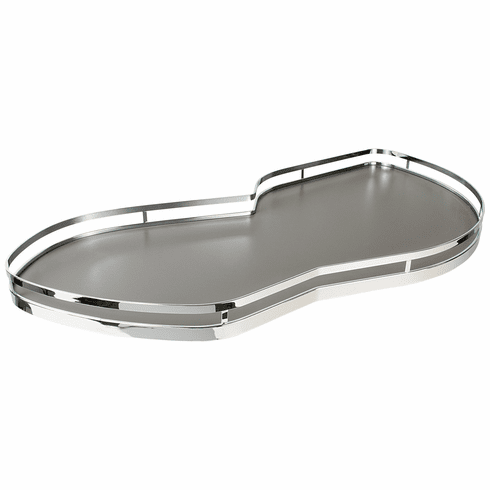

- 2 trays
- 1 post
- 2 soft close
- 1 mounting profileData Sheet
Product Resources
Brand PDF Catalogs
Click on a Category to open a PDF catalog:
Sliding and Folding Catalog
Fineline Brochure
Free Flap Fittings Brochure
The Complete Architectural Hardware Catalog
Dialock In Hotels Catalog
Dialock System Catalog
IXConnect Invisible Heroes
One Room One Face Catalog
Architectural Hardware: American Standard Catalog
Closet Catalog
Decorative Wood Catalog
Cornerstone Catalog
Decorative Hardware Catalog
Kitchen Solutions Catalog
Loox5 Lighting Catalog
Furniture Cabinetry Hardware Catalog
Designing Accessibility HEWI Catalog
The Complete CabinetRequired Products & Optional Accessories
Optional Accessories:- Highboard Post Kit, for LeMans II
- Dampener, for LeMans II
- Optional Filler Strip, for LeMans II
- Angle Reduction Bracket, for LeMans II
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
