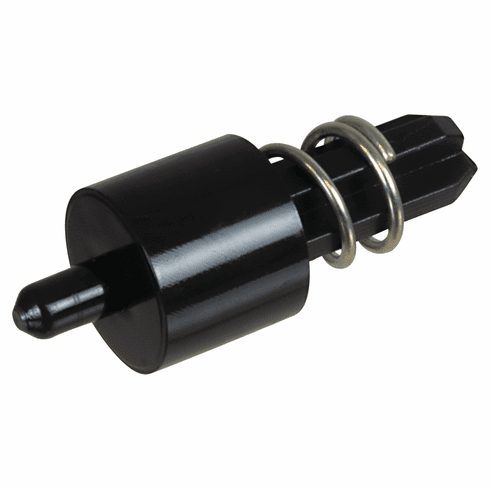

Hafele 521.99.380 Parallel Shelf Pins, for Parallel Rods

Product Information

• Description

  Manufacturer: Hafele
  Item: 521.99.380

  Product Title: Parallel Shelf Pins, for Parallel Rod Wine Storage, 18 Pins, Black

  Category: Parallel Shelf Pins, for Parallel Rod Wine Storage, 18 Pins

  Item Details …

  - Spring-loaded to allow the quick and easy installation of the parallel rods into standard 5 mm shelf pin holes

  - Material : ABS Plastic

  - Load bearing capacity : 4.00 kg

  - Load bearing capacity : 9 lbs

  - Note on load bearing capacity : per parallel rod

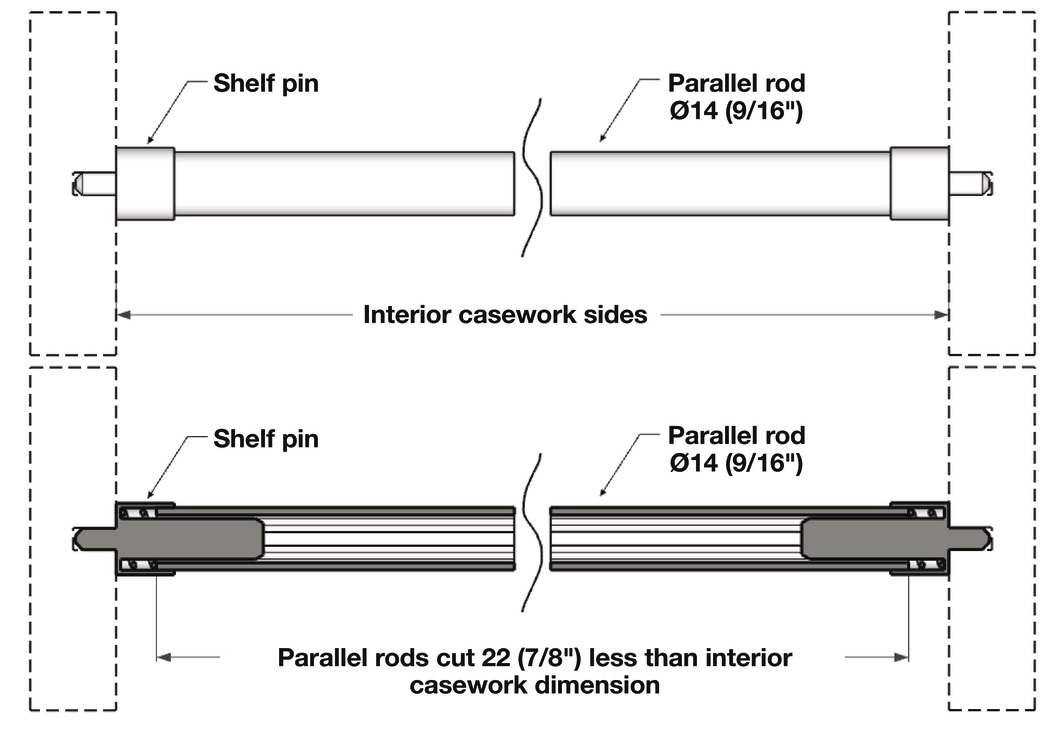

  - Installation : The parallel rod should be cut 22 mm (7/8") shorter than the interior dimensions of the casework sidewall

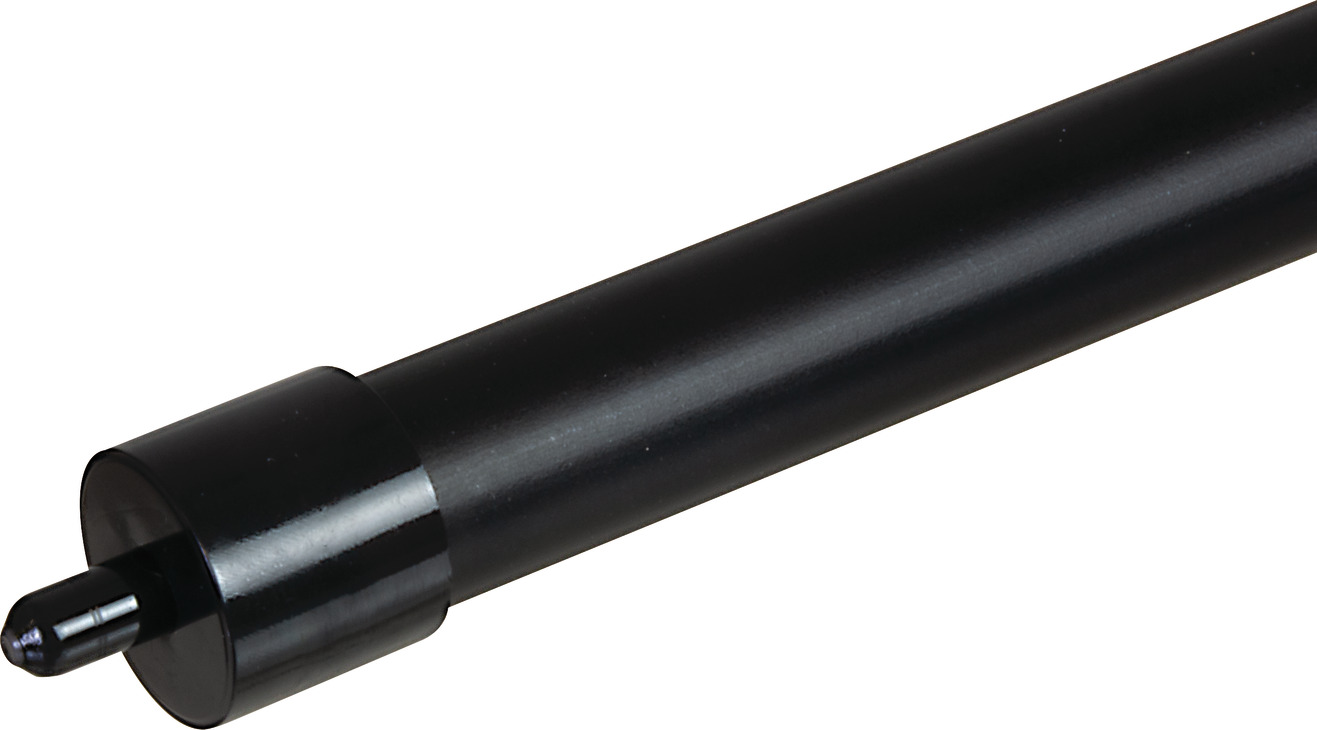

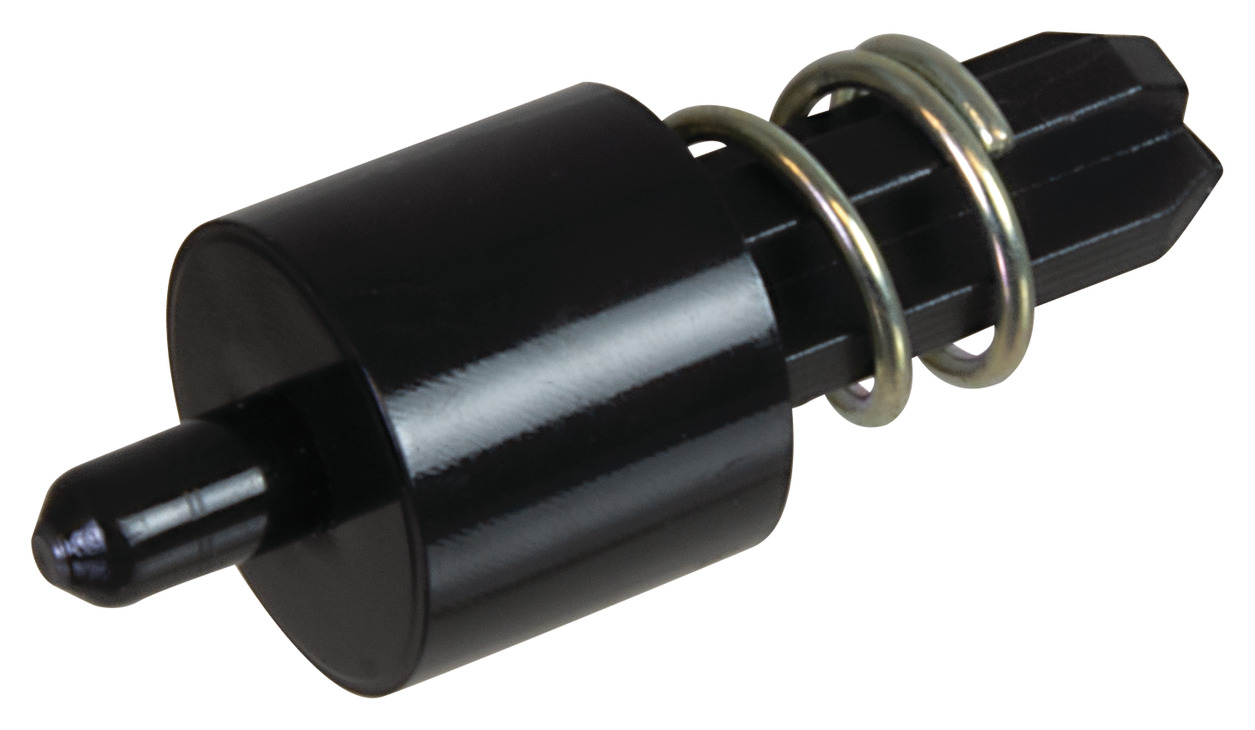

  - Note : Each parallel shelf pin (PSP) has a spring that slips over the spline. Insertthe spline into the Parallel Rod on each end. The shelf pin compresses intothe Parallel Rod allowing the rod to fit snugly between the interior casework sidewalls.To install a Parallel Rod into interior casework, fit the spring onto the spline of the PSP and insert it into the ends of the Parallel Rods. Insert one end of the rod into a 5 mm shelf hole, then push the rod against the side wall to compress the spring. At the same time, compress the other PSP by hand while you align the opposite shelf pin hole, releasing the pressure as the hardware pin springs expand against the casework sidewalls. The Parallel Rod is now securely held into place.

  - Color : Black

  - Order reference

  - Two parallel shelf pins are required for each parallel rod


  Additional Information …

  Each parallel shelf pin (PSP) has a spring that slips over the spline. Insertthe spline into the Parallel Rod on each end. The shelf pin compresses intothe Parallel Rod allowing the rod to fit snugly between the interior casework sidewalls.To install a Parallel Rod into interior casework, fit the spring onto the spline of the PSP and insert it into the ends of the Parallel Rods. Insert one end of the rod into a 5 mm shelf hole, then push the rod against the side wall to compress the spring. At the same time, compress the other PSP by hand while you align the opposite shelf pin hole, releasing the pressure as the hardware pin springs expand against the casework sidewalls. The Parallel Rod is now securely held into place.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Wine Storage Pantry Fittings Sell Sheet

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.126



• Brand PDF Catalogs

• Required Products & Optional Accessories

  Optional Accessories:



  • Wine Storage Parallel Rods
