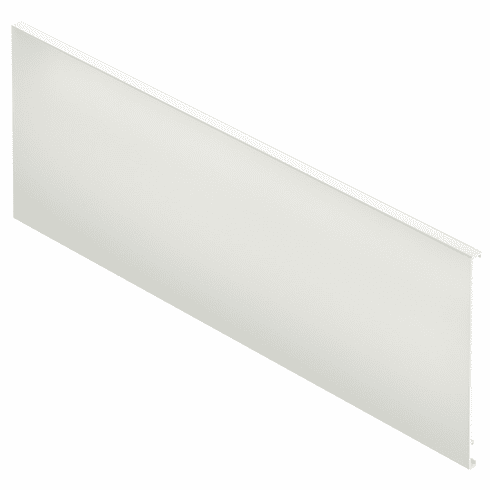

Hafele 513.70.729 Front Panel, For internal pull out

Product Information

• Description

  Manufacturer: Hafele
  Item: 513.70.729

  Product Title: Front Panel, For internal pull out, With drawer side height 92 or 115 mm and side railing, White

  Category: ,

  Item Details …

  - Suitable for : Drawer side runner system Matrix Box

  - Area of application : For internal pull out

  - Material : Aluminum

  - Version : Can be shortened

  - Installation : Holders for screw fixing to the panelpanel is clipped onto the drawer sides with panel holders

  - For side panel thickness : 16 mm

  - Height : 189.00 mm

  - Installation reference : Length = internal cabinet width – 10 mm


  Additional Information …

  Holders for screw fixing to the panelpanel is clipped onto the drawer sides with panel holders

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Matrix Box P VIS internal pull out with aluminium panel

  Matrix P | The ultimate drawer system

  Matrix P Installation, Adjustment and Removal
