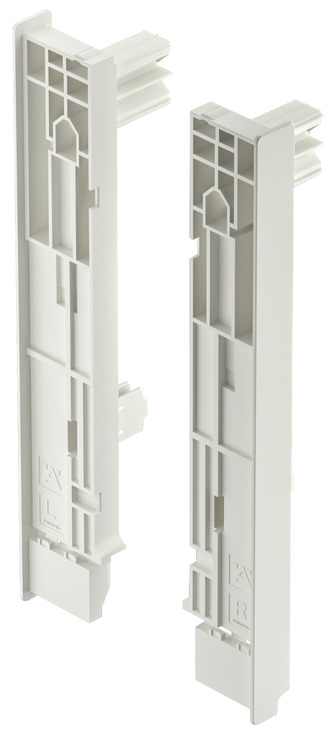

Hafele 513.70.393 Panel holder, For internal pull out

Product Information

• Description

  Manufacturer: Hafele
  Item: 513.70.393

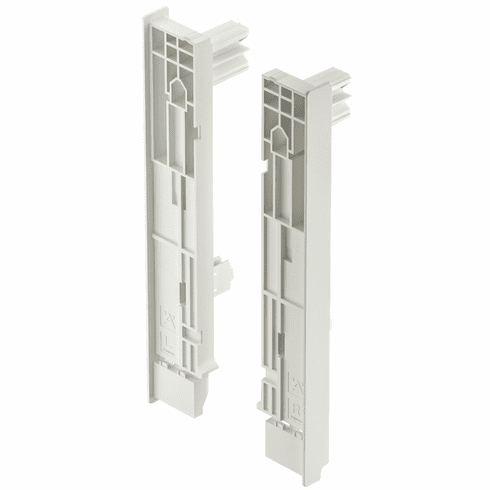

  Product Title: Panel holder, For internal pull out, With drawer side height 92 or 115 mm and side railing, Metallic anthracite

  Category: ,

  Item Details …

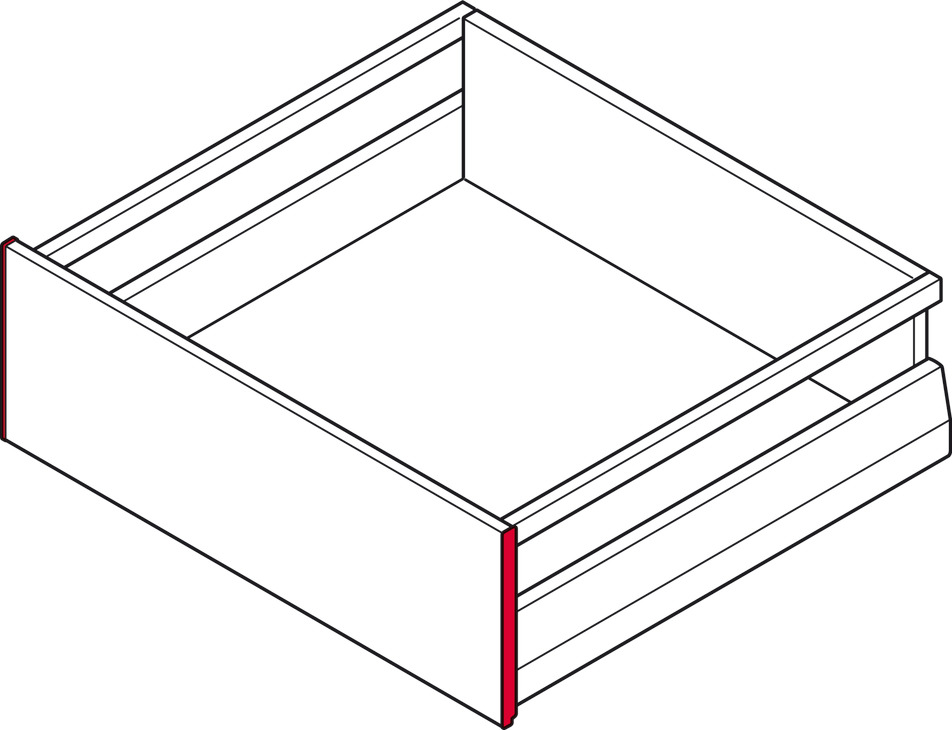

  - Area of application : For internal pull outconnects the drawer sides with the panel and railing

  - Material : Plastic

  - Installation : Panel is clipped onto the drawer sidesthe railing is inserted into the holders

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Matrix Box P VIS internal pull out with aluminium panel

  Matrix P | The ultimate drawer system

  Matrix P Installation, Adjustment and Removal



• Videos

• Brand PDF Catalogs
