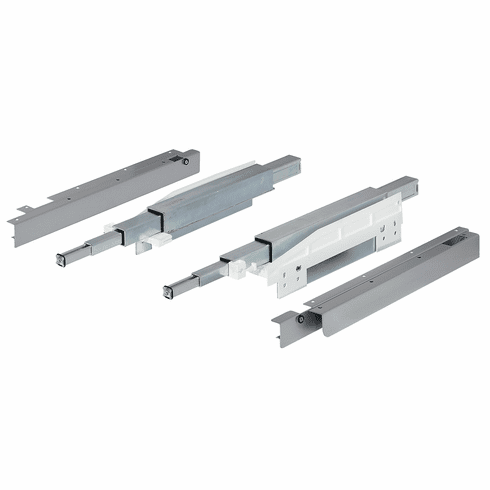

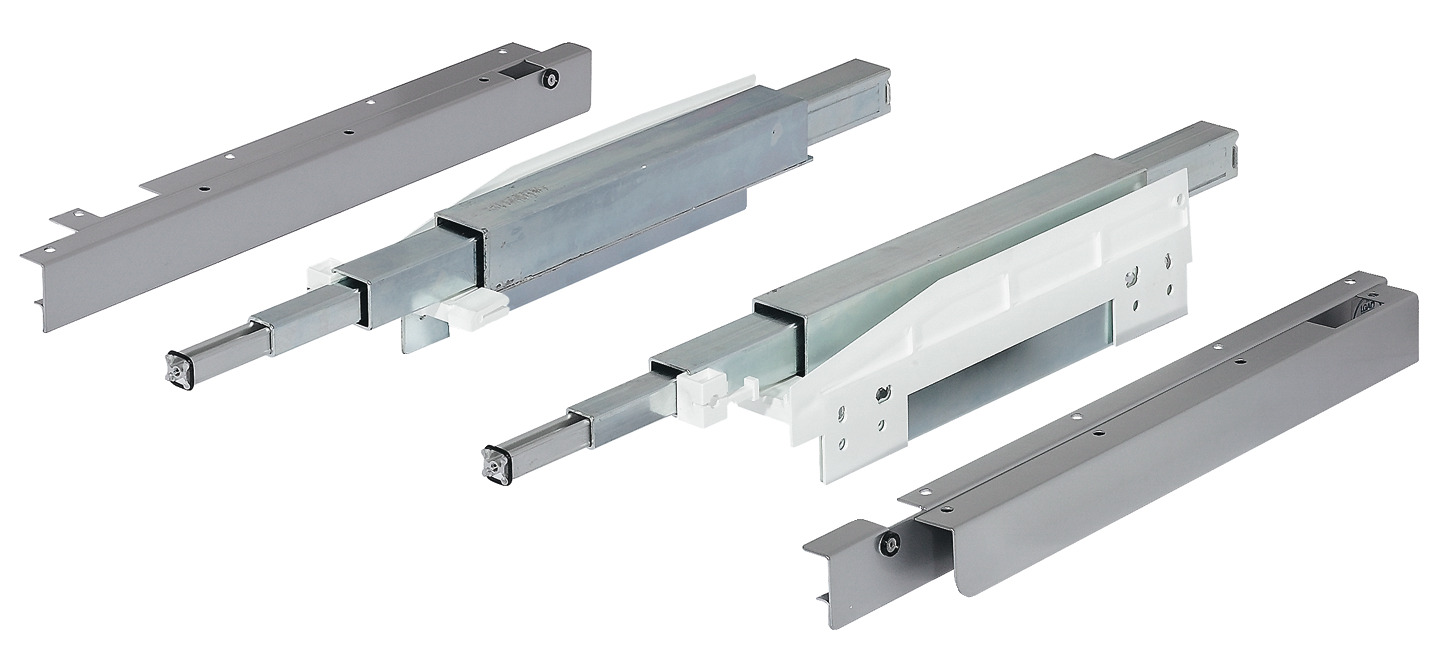

Hafele 505.70.200 Pull-out Table Fitting, steel, 810mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 505.70.200

  Product Title: Pull-Out Table Fitting, Top Flex, Without worktop, extension length: 810 mm, internal cabinet depth: ?500 mm

  Category: Pull-Out Table Fitting, Top Flex, Without worktop, extension length: 810 mm, internal cabinet depth: ?500 mm

  Item Details …

  - Extension fitting can support any width surface up to 900 mm (35 1/2")

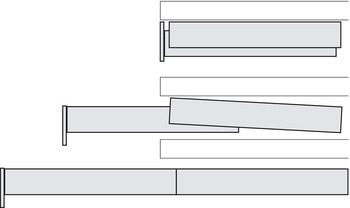

  - As the table is extended, the front panel drops down automatically until the top is flush with the table

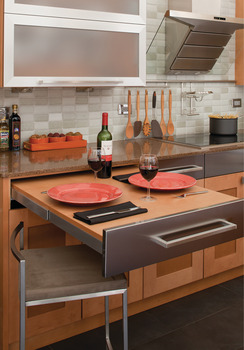

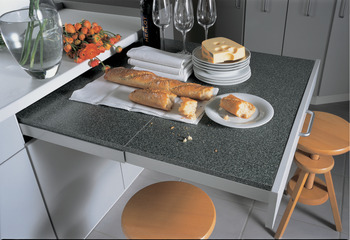

  - Extend kitchen prep areas when you need them and quickly stow away when you don’t

  - Extension length : 810.00 mm

  - Extension length : 32"

  - Min. internal cabinet depth : 500.00 mm

  - For internal cabinet height : 26 - 32"

  - Color/finish : White aluminum, RAL 9006, zinc plated or powder coated, Galvanized or powder coated, white aluminum, RAL 9006

  - For cabinet depth : Min. 20"

  - For cabinet width : 17 3/4 - 35 1/2"

  - Internal cabinet height : 4 3/4"

  - Cabinet depth : Min. 20"

  - Version : Front panel automatically drops to level of additional worktop, with lateral cover for the hardware and fitting system

  - Material : Steel, plated

  - Load bearing capacity : 30.00 kg

  - Load bearing capacity : 66 lbs

  - For cabinet width : 450?–?900 mm

  - Installation reference : Recommended table top thickness: 5/8"

  - Supplied with:

  - 1 pull out table fitting

  - 1 set of installation instructions


  Additional Information …

  Table top and front panel are customer supplied.
