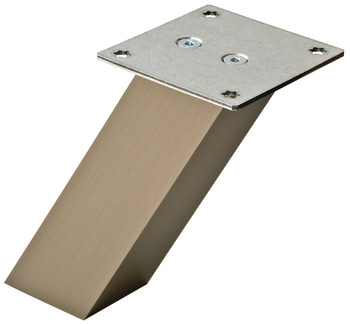

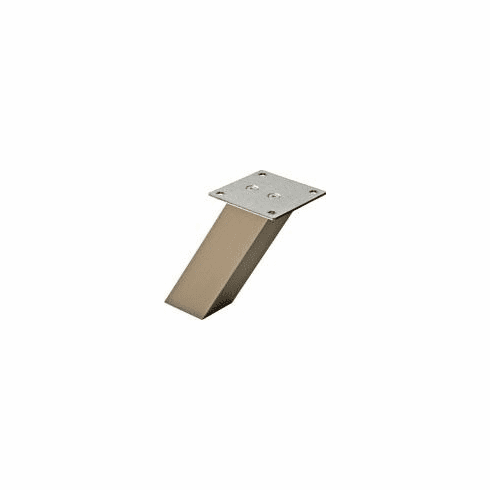

Hafele 505.23.022 Countertop Support, Square 60 degree Angled Height: (7 1/2") 190 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 505.23.022

  Product Title: Countertop Support, Square 60° Angled, Height: (7 1/2") 190 mm

  Category: Countertop Support, Square 60° Angled,

  Item Details …

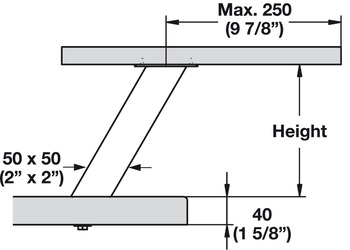

  - Maximum distance between supports: 900 mm (35 1/2")

  - Material : Steel

  - Color/finish : Stainless steel effect

  - Installation : Mounts on the countertop

  - Area of application : For solid tops

  - Load bearing capacity : 40.00 kg

  - Load bearing capacity : 88 lbs

  - Supplied with:

  - Mounting hardware

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Bar Console Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.138



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.93-3.95.pdf

  Hafele 505.23.022, 505-23-022, 50523022, 505.23


  Specifications/Hafele Catalog - Page# FC3.85: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs
