Hafele 504.20.900 Lift-up fitting, steel, silver, 30 lbs

Product Information

• Description

  Manufacturer: Hafele
  Item: 504.20.900

  Product Title: Appliance Lift, Hardware Mechanism,

  Category: Appliance Lift, Hardware Mechanism,

  Item Details …

  - Soft down function to prevent mixer from damaging cabinet interior when released

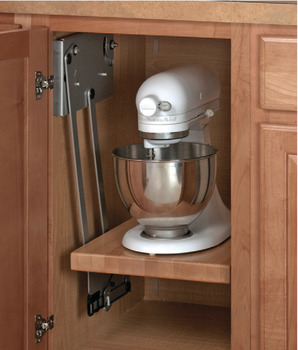

  - Regain use of all your countertop with our Appliance Lift that brings items to your level when in use and discreetly stores them for when company shows up

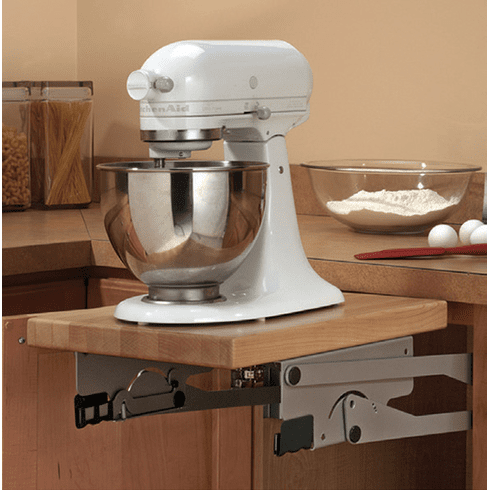

  - Kitchen appliances raise effortlessly with a gas cylinder assist and then lock securely into place

  - Can be outfitted with a custom block platform or a quality pre-made maple wood platform

  - Internal cabinet depth : 330.00 mm

  - Internal cabinet height : 608.00 mm

  - Internal cabinet height : 23 61/64"

  - Internal cabinet width : Platform surface + 2 1/2”

  - For max. internal cabinet depth : 13”

  - Material : Steel

  - Color/finish : Platinum

  - Load bearing capacity : 13.00 kg

  - Load bearing capacity : 30 lbs

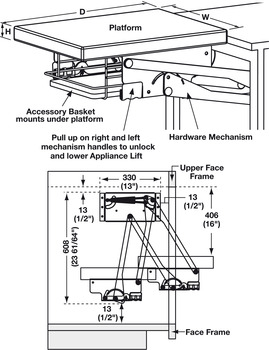

  - Mounting : Lift can be positioned at two different levels: flush with counter or 2” below counter

  - Installation : Install 1/2" down and 1/2" back from upper Face Frame

  - Installation reference : Internal cabinet width = Platform surface + (2 1/2”) 64 mmInternal cabinet depth = Maximum platform depth or (13”) 330 mm

  - Supplied with:

  - 1 right arm

  - 1 left arm


  Additional Information …

  Load capacity should not exceed 13 kg (30 lbs.)
