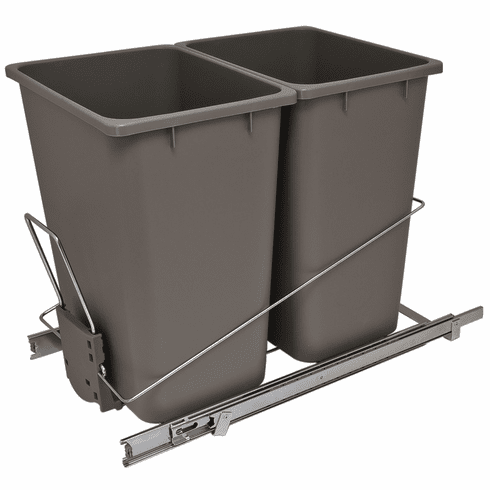

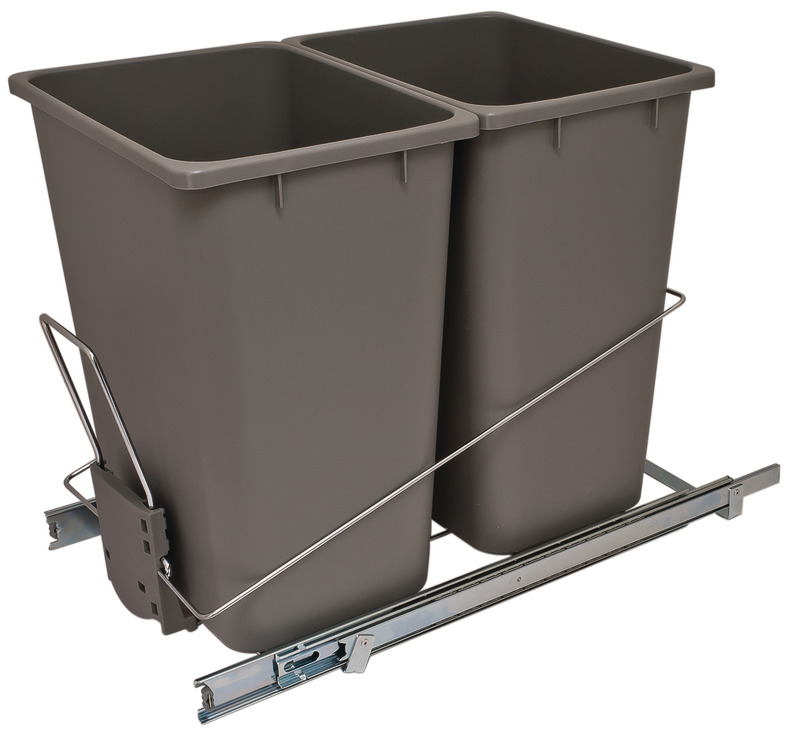

Hafele 503.88.971 Trash Can, double 36qt, bottom mounted, soft close, steel, chrome, 14 1/8" x 21 3/4"

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.88.971

  Product Title: Wire Waste Bin System, Double Bin, Soft close ball bearing slides

  Category: Wire Waste Bin System, Double Bin, Soft close ball bearing slides

  Item Details …

  - Easy to install with 4 screws in the floor of the cabinet

  - Front bracket slides up against the back side of the face frame for easy mounting

  - This sturdy, wire system holds waste bins in place and allows for easy removal and replacement

  - Version : Bottom mount with soft close ball bearing slides

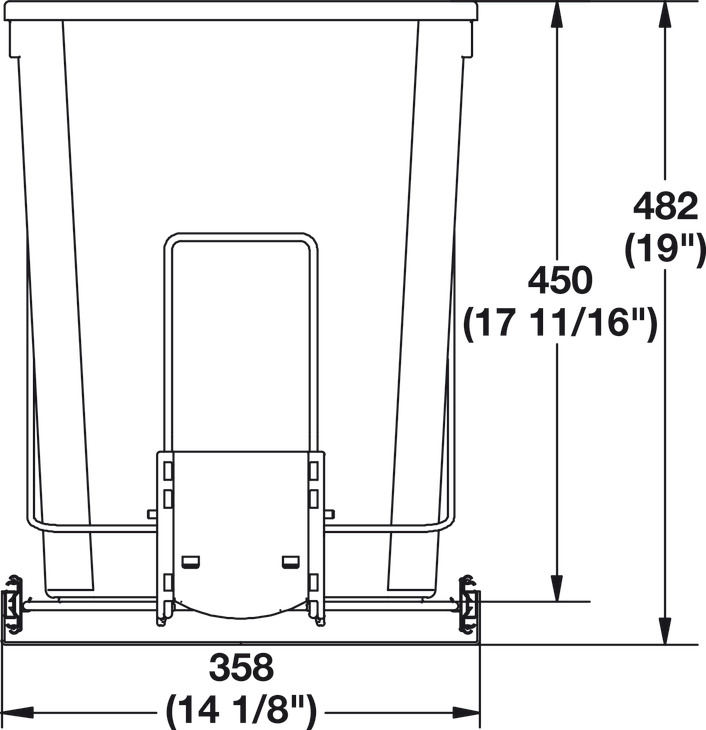

  - Width : 358.00 mm

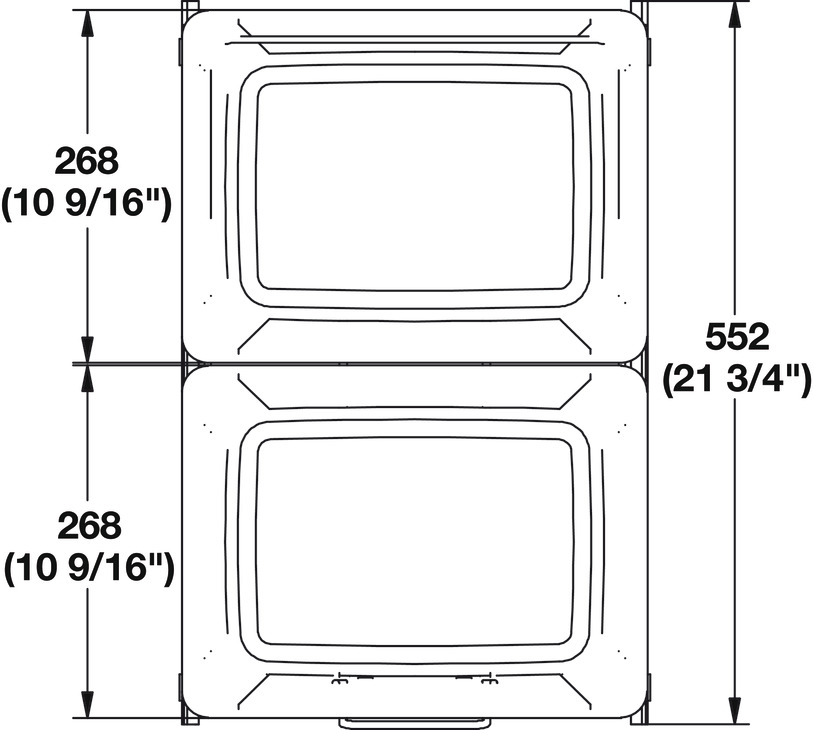

  - Depth : 552.00 mm

  - Depth (inch) : 21 3/4"

  - Height : 482.00 mm

  - Height (inch) : 19"

  - Bin : 34 l / 34 l

  - Material/finish : Holder: Steel; Bin: Plastic, Holder: Chrome; Bin: Gray

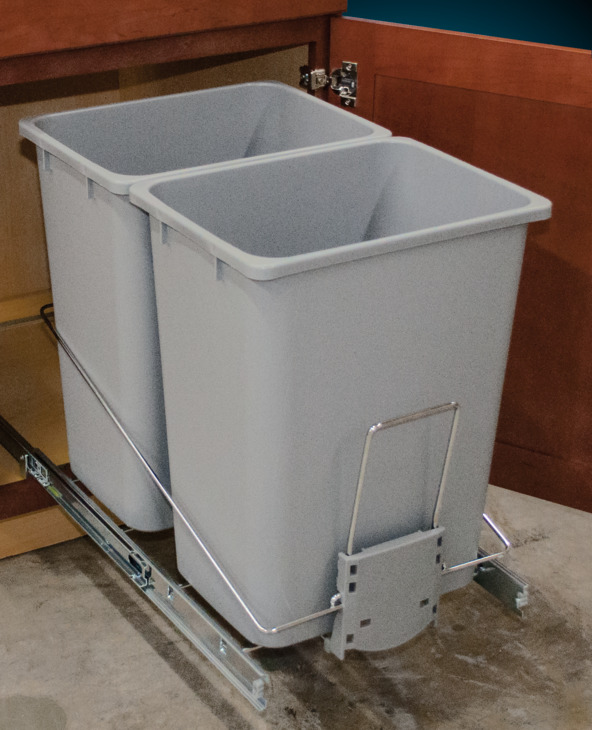

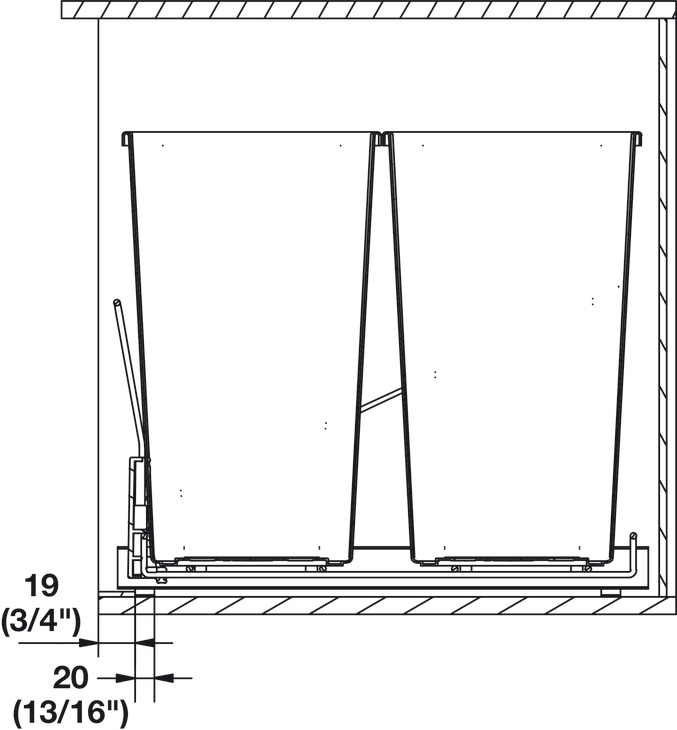

  - Mounting location : Installation behind hinged doors

  - Area of application : For use behind a hinged door

  - Load bearing capacity : 88 lbs

  - Capacity : 68.00 l

  - Capacity : 2 x 36 qt.

  - Supplied with:

  - Frame

  - Bins

  - Mounting screws
