Hafele 503.88.852 Waste Bin Pull-Out, Wood Frame, Bottom Mount, Single, with Grass Elite Undermount Slides with soft close, 36 qt

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.88.852

  Product Title: Waste Bin Pull-Out, Wood Frame, Bottom Mount, Single, with Grass Elite Undermount Slides, with soft close, 36 qt

  Category: Waste Bin Pull-Out, Wood Frame, Bottom Mount, Single, with Grass Elite Undermount Slides, with soft close

  Item Details …

  - Comes with adjustable door mounting bracket

  - Integrated Grass Elite 36 kg (80 lb.) capacity soft close slides

  - Dovetailed construction

  - Easy mounting to the cabinet floor with supplied screws

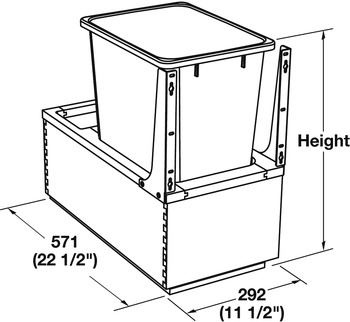

  - For cabinet width : ?292 mm

  - Installation depth : 572.00 mm

  - Number of bins : 1.00

  - Width (inch) : 11 1/2"

  - Depth (inch) : 22 1/2"

  - For cabinet depth : 22 3/8"

  - For cabinet height : 19 5/8"

  - Material/finish : Prefinished Baltic birch plywood with solid birch topBin: Gray plastic

  - Area of application : Designed to fit an opening: Frace Frame: 12" wide × 19 3/4" high or Frameless: 13" wide x 19 3/4" high

  - Supplied with:

  - Mounting screws for pull-out

  - 1 bin

  - Mounting instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Single Waste Bin Pull-Out Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.46



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Replacement Waste Bin, for Kesseböhmer Wire and Wood Framed Waste Pull-Out Units
