Hafele 503.70.332 Pull Out Waste Bin, Hailo Euro Cargo

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.70.332

  Product Title: Pull Out Waste Bin, Hailo Euro Cargo, Installation behind fronts, cabinet width: 450 mm, Anthracite

  Category: ,

  Item Details …

  - Sturdy metal lid, suitable as shelf

  - 100,000 cycle tested

  - Installation depth : 528 mm

  - For side panel thickness : 16 or 19 mm (self-adjusting)

  - Min. installation height : 545.00 mm

  - Height (inch) :

  - Material/finish : Pull out and system lid: Steel, powder coatedBin: Plastic

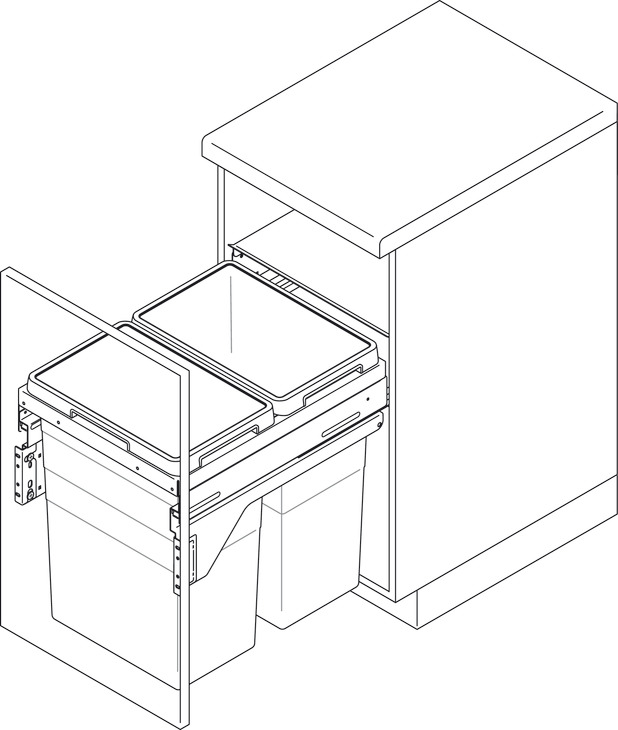

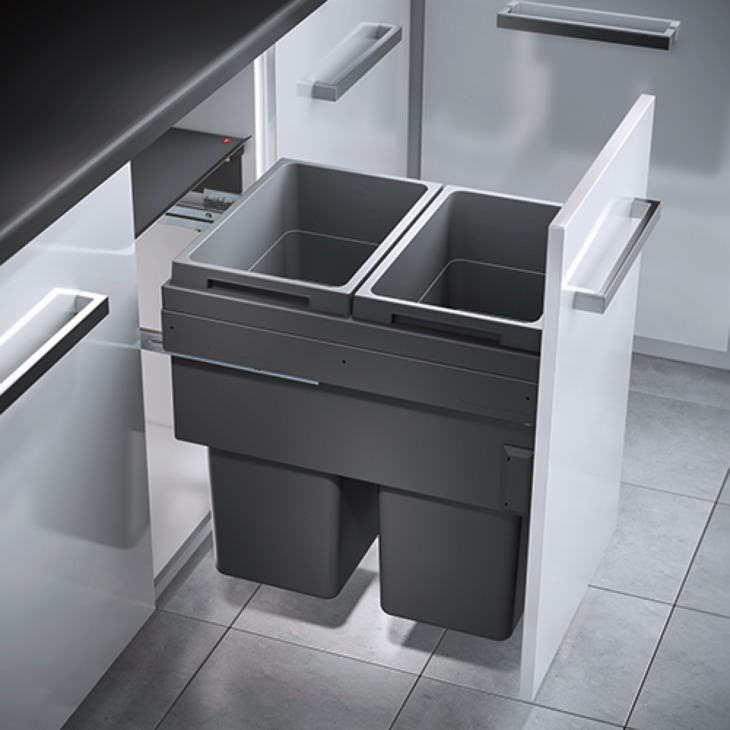

  - Version : The product is designed to be pulled out of the cabinet in such a way that the lid remains inside the cabinet to act as a storage space.The container is mounted on the inside of the cabinet and has concealed, fully synchronized Nova Pro Smooth-Tec soft-close rails with overextension.

  - Type of pull out : Covered, synchronized overextension with soft closing mechanism

  - Mounting : For screw fixing to side panel

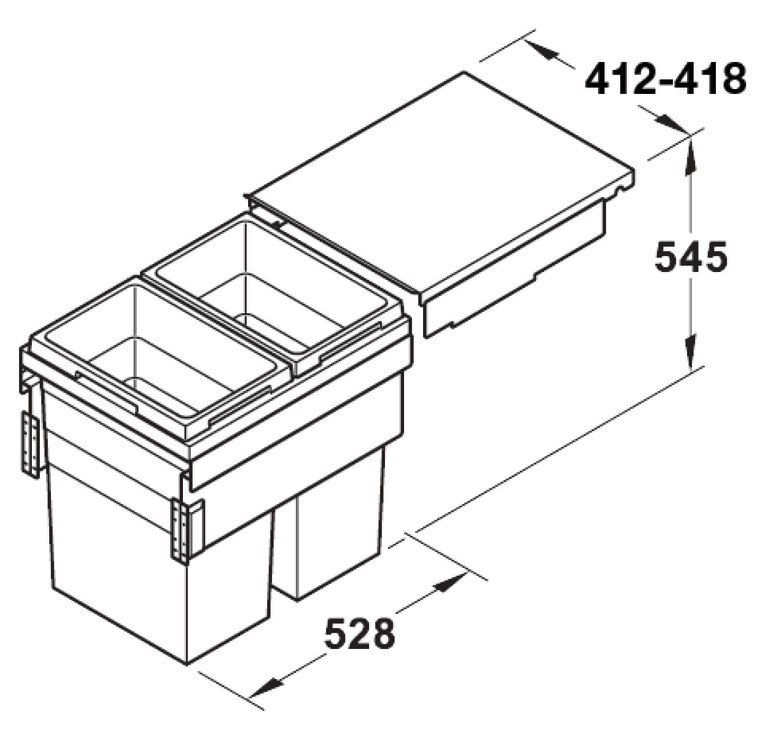

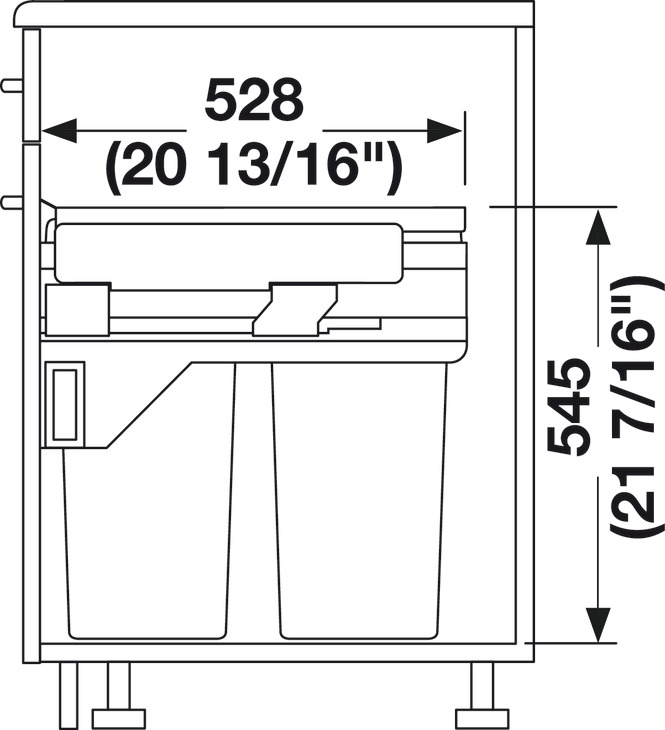

  - Installation reference : D x H: 528 × 545 mm (20 13/16" × 21 7/16")

  - For internal cabinet width min. : 412.00 mm

  - For internal cabinet width max. : 418.00 mm

  - Number of bins : 2.00

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Euro Cargo 60 Mounting Instructions



• Brand PDF Catalogs

• Required Products & Optional Accessories

  Optional Accessories:



  • Replacement lid, For 12 liter bin, Hailo Euro-Cargo 3619
  • 2.5 Liter Replacement Waste Bin, for Hailo Euro Cargo
  • 12 Liter Replacement Waste Bin, for Hailo Euro Cargo
  • 38 Liter Replacement Waste Bin, for Hailo Euro and Easy Cargo Pull Out Units
