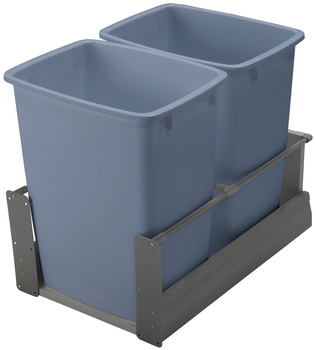

Hafele 503.15.224 Waste Bin Pull-Out, MX, Double Frame: anthracite, bottom and back: black melamine, bin: gray; 2 x 52 qt

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.15.224

  Product Title: Waste Bin Pull-Out, Häfele Matrix, Double, Frame: anthracite, bottom and back: black melamine, bin: gray; 2 x 52 qt

  Category: Waste Bin Pull-Out, Häfele Matrix, Double,

  Item Details …

  - Add your door thickness for inset applications

  - Double wall steel frame system provides heavy duty structure and a stylish design

  - Unit comes pre-assembled with bins included

  - Melamine Bottom and Back with Edgebanding

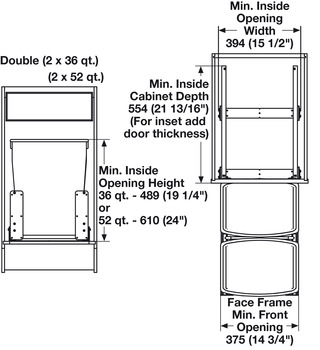

  - For internal cabinet depth : ?554 mm

  - Number of bins : 2.00

  - For internal cabinet depth min. : 21 13/16"

  - Internal cabinet width : 14 3/4 - 16 1/4"

  - Material/finish : Frame: Steel; Bottom & back: Particle board; Bin: Plastic

  - Area of application : Bottom mount unit designed for Face Frame or Frameless cabinets

  - Version : Soft & silentMinimum Opening Width:• 375 mm (14 3/4") Face Frame• 394 mm (15 1/2") Frameless• 413 mm (16 1/4") with door brackets reversed for Full Overlay 5 piece doors

  - Type of pull out : Full extension progressive action runners

  - Load bearing capacity : 110 lbs

  - Installation : Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)

  - Supplied with:

  - Mounting screws

  - Mounting instructions
