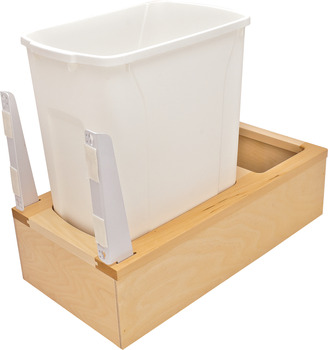

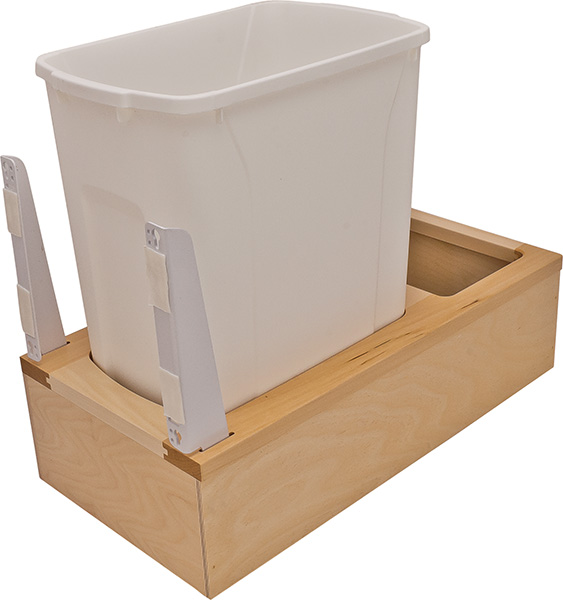

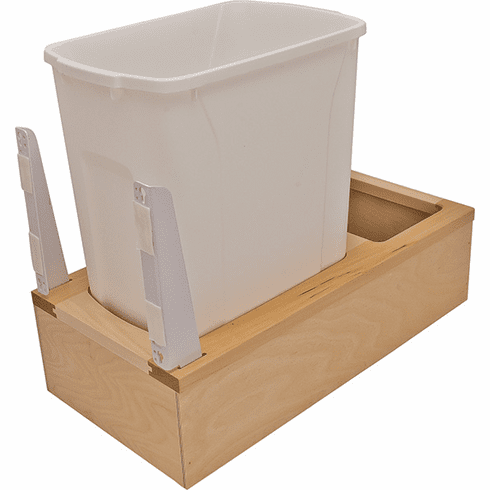

Hafele 503.14.772 Waste Bin Pull-Out, KV Wood Frame, Bottom Mount, Single, Depth is 22 3/8" 35 qt.

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.14.772

  Product Title: Waste Bin Pull-Out, KV Wood Frame, Bottom Mount, Single, Depth is 22 3/8", 35 qt.

  Category: Waste Bin Pull-Out, KV Wood Frame, Bottom Mount, Single, Depth is 22 3/8",

  Item Details …

  - 30 lbs. maximum per bin, not to exceed 80 lbs. total weight

  - Not intended for bulk storage

  - Wood drawer box holds bins and provides a clean neutral look

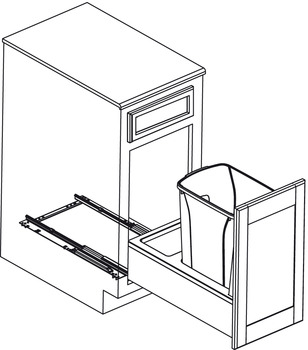

  - Installs in minutes with self-aligning brackets secured with only 6 screws

  - Unique, washable, solid floor

  - Prevents debris from falling through to floor/cabinet

  - Easy to clean

  - Conceals hardware

  - Single bin units include a storage space for trash bags or cleaning products

  - Bins have optional lids

  - For internal cabinet width : 286 mm

  - For internal cabinet depth : ?568 mm

  - Suitable for : Heavy-duty, under-mount slide with soft-close technology

  - Number of bins : 1.00

  - Color/finish : Bin: White

  - Width (inch) : 11 1/4"

  - Depth (inch) : 22 3/8"

  - Version : Heavy-duty, under-mount slide with soft-close technology

  - Installation : Inserted at the bottom of the drawerCut-to-size

  - Installation reference : If using lid, add 3/4” to height

  - For internal cabinet width min. : 286.00 mm

  - For internal cabinet width max. : 286.00 mm
