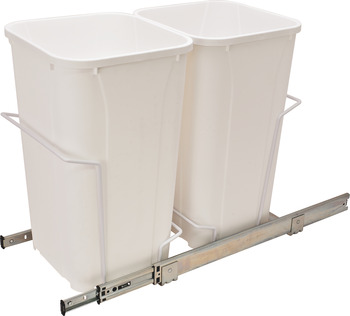

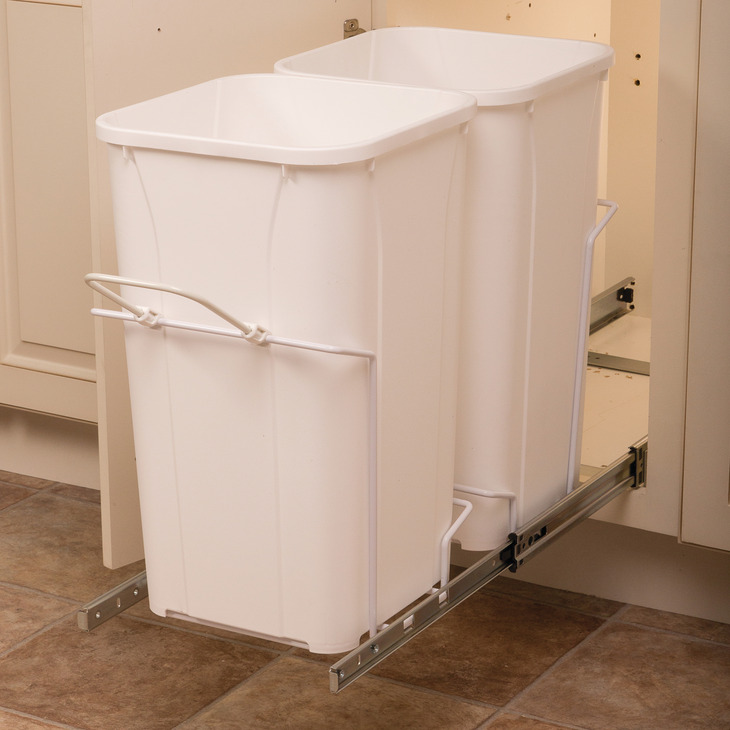

Hafele 503.12.784 Waste Bin Pull-Out, KV Bottom Mount, Double, Ball Bearing Precision Slide with Overtravel (W x H x D) 288 x 483 x 584 mm, capacity: 2 x 27 qt.

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.12.784

  Product Title: Waste Bin Pull-Out, KV Bottom Mount, Double, Ball Bearing Precision Slide with Overtravel, (W x H x D) 288 x 483 x 584 mm, capacity: 2 x 27 qt.

  Category: Waste Bin Pull-Out, KV Bottom Mount, Double, Ball Bearing Precision Slide with Overtravel,

  Item Details …

  - If using lid, add 3/4" to height

  - Specialized wire management system holds bins securely in place

  - Pre-assembled units install easily with only four screws

  - Easy-open handle is standard on all units and integrated on triple bin units. Its wide, open architecture makes it easy to grasp.

  - Material/finish : Frame: SteelBins: Plastic, Epoxy-coated

  - Type of pull out : Heavy-duty ball bearing precision slides with overtravel

  - Load bearing capacity : 80 lbs

  - Capacity : 51.00 l

  - Capacity : 2 x 27 qt.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Double Waste Bin Unit Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.33



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.19-3.27.pdf

  Hafele 503.12.784, 503-12-784, 50312784, 503.12
