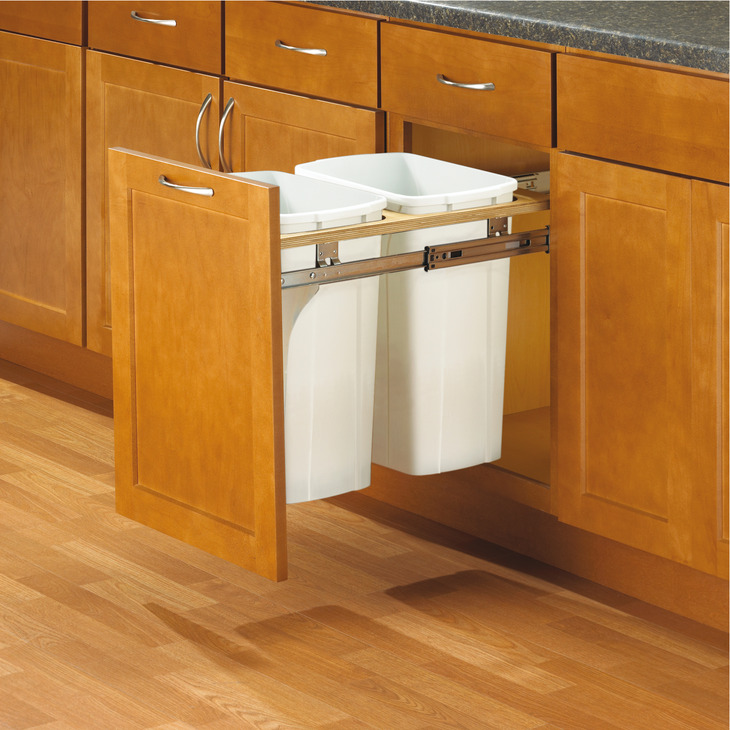

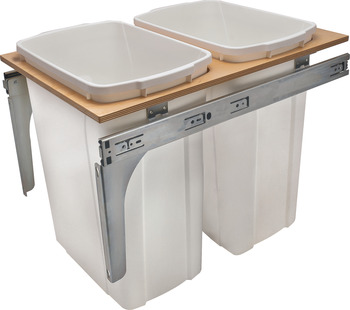

Hafele 503.12.749 Waste Bin Pull-Out, KV Wood Frame Side Mount, Double, Depth is 22 1/2" (W x H) 457 x 445 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.12.749

  Product Title: Waste Bin Pull-Out, KV Wood Frame Side Mount, Double, Depth is 22 1/2", (W x H) 457 x 445 mm

  Category: Waste Bin Pull-Out, KV Wood Frame Side Mount, Double, Depth is 22 1/2",

  Item Details …

  - Door mount brackets include six-way adjustability for precise door alignment and easy installation

  - Made of multi-ply birch veneered plywood with soft radius edges for safety and comfort

  - For internal cabinet height : 445.00 mm

  - For internal cabinet depth : ?571 mm

  - Capacity : 66.00 l

  - Capacity : 2 x 35 qt.

  - Bin : 33 l / 33 l

  - Number of bins : 2.00

  - Color/finish : White

  - Depth (inch) : 22 1/2"

  - Height (inch) : 17 1/2"

  - Material/finish : Birch veneered plywood/SteelBins: Polymer

  - Version : Removable bins and optional lids

  - Type of pull out : Heavy-duty, precision ball bearing slides with overtravel

  - Load bearing capacity : 80 lbs

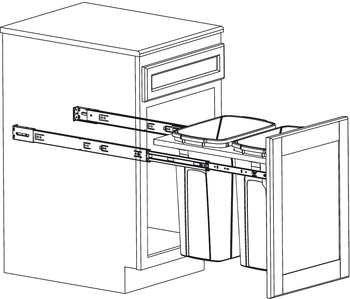

  - Mounting : Side mounted

  - For internal cabinet width min. : 457.00 mm

  - For internal cabinet width max. : 457.00 mm


  Additional Information …

  If using lid, add 3/4” to height

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.44



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.30-3.32.pdf

  Hafele 503.12.749, 503-12-749, 50312749, 503.12


  Specifications/Hafele Catalog - Page# FC3.29: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs
