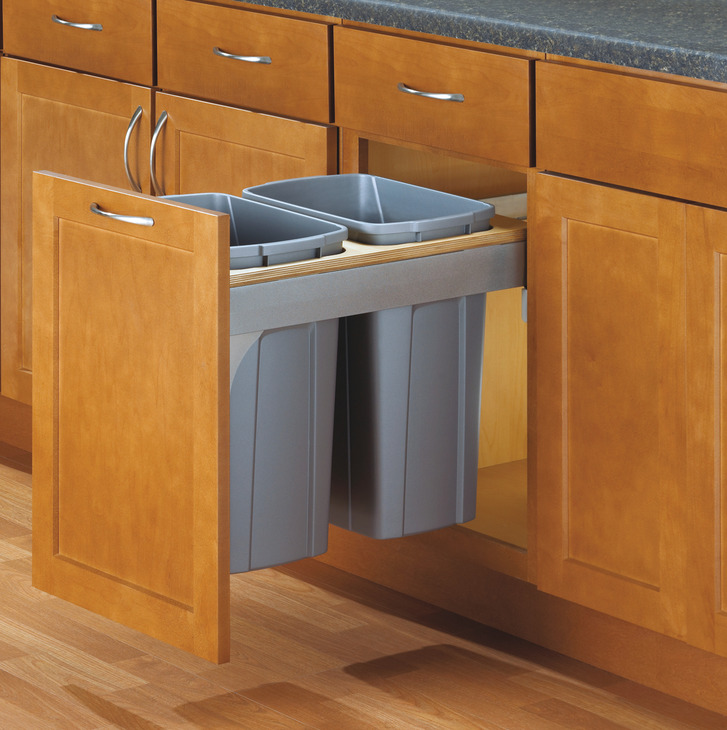

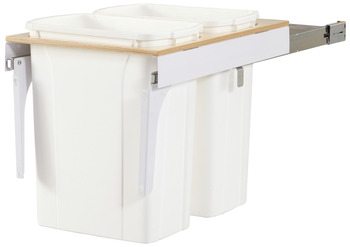

Hafele 503.11.756 Waste Bin Pull-Out, KV Wood Frame, Side Mount, Double, Depth is 23 3/16" White, 381 mm (15")

Product Information

• Description

  Hafele 503.11.756 Waste Bin Pull-Out, KV Wood Frame, Side Mount, Double, Depth is 23 3/16"
  White, 381 mm (15")



  Features : Soft & silent

  Type of pull out : Heavy-duty, full-extension, overtravel ball bearing slides

  Capacity : (2 x 35 qt.) 2 x 33 liters

  Load bearing capacity : (80 lbs.) 36 kg

  Height : (17 1/2") 445 mm

  Depth : (23 3/16") 589 mm

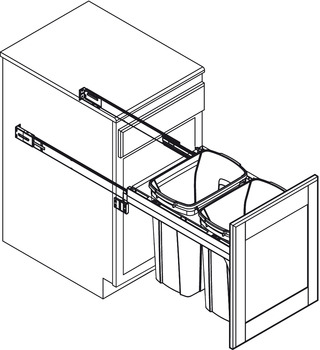

  Mounting : Side panel-mounted
  Unique KV Face Frame Adapter Mounting Hardware accommodates 1 3/4" face frame cabinets by allowing for installation in openings 1/2" smaller than standard sizes (excluding 503.11.756 and 503.11.556)

  Material : Birch veneered plywood/Steel
  Bin: Plastic





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.30-3.32.pdf

  Hafele 503.11.756, 503-11-756, 50311756, 503.11


  Specifications/Hafele Catalog - Page# FC3.28: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
