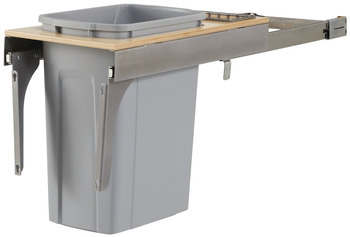

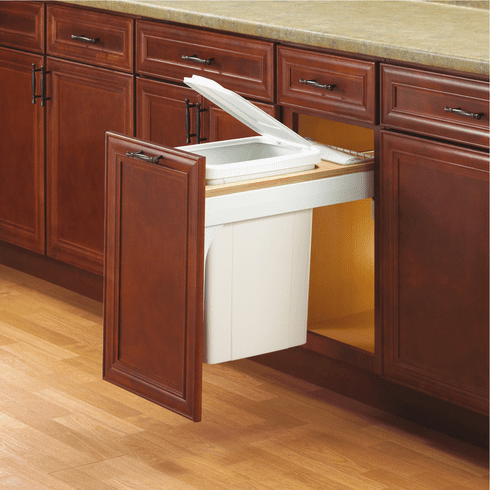

Hafele 503.11.532 Waste Bin Pull-Out, KV Wood Frame, Side Mount, Single, Depth is 23 3/16" Frosted nickel, capacity: 35 qt.

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.11.532

  Product Title: Waste Bin Pull-Out, KV Wood Frame, Side Mount, Single, Depth is 23 3/16", Frosted nickel, capacity: 35 qt.

  Category: Waste Bin Pull-Out, KV Wood Frame, Side Mount, Single, Depth is 23 3/16",

  Item Details …

  - Unique KV Face Frame Adapter Mounting Hardware accommodates 1 3/4" face frame cabinets by allowing for installation in openings 1/2" smaller than standard sizes (excluding 503.11.756 and 503.11.556)

  - Made of multi-ply birch veneered plywood with soft radius edges for safety and comfort

  - Door-mount brackets include six-way adjustability for precise door alignment and easy installation

  - For internal cabinet depth : ?589 mm

  - Suitable for : Soft & silent

  - Number of bins : 1.00

  - Depth (inch) : 13”

  - Material/finish : Birch veneered plywood/SteelBin: Plastic

  - Version : Soft & silent

  - Type of pull out : Heavy-duty, full-extension, overtravel ball bearing slides

  - Load bearing capacity : 80 lbs

  - Mounting : Side panel-mounted

  - Installation : If using lid, add 3/4" to height

  - For internal cabinet width min. : 292.00 mm

  - For internal cabinet width max. : 292.00 mm

  - Order reference

  - Please order optional lids separately
