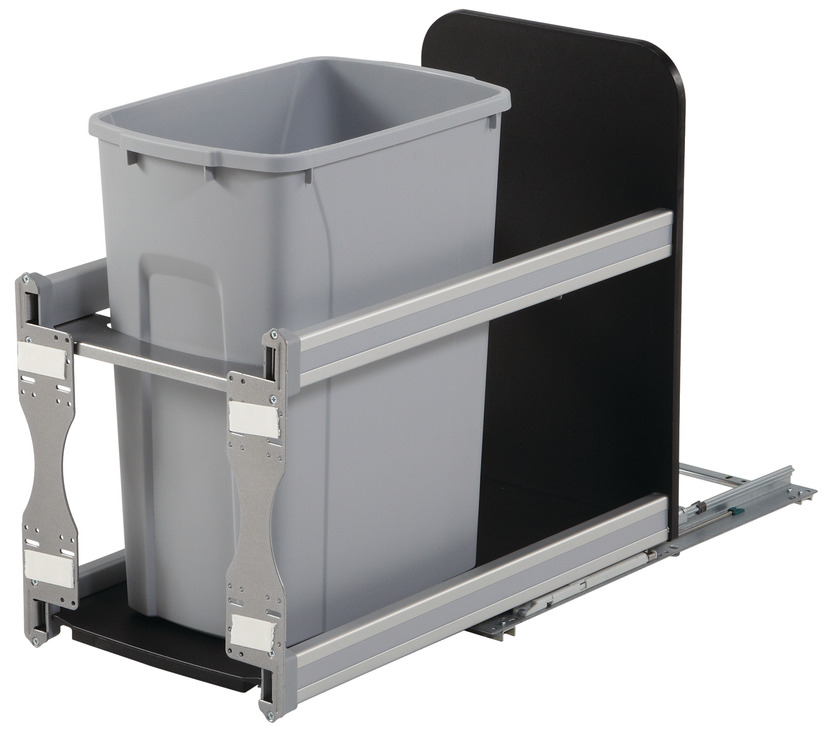

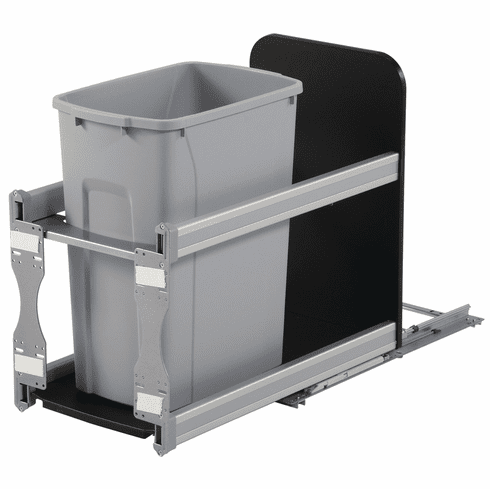

Hafele 503.11.503 Waste Bin Pull-Out, KV Bottom Mount, Single, Undermount Slide with Soft-Close Frosted nickel, 35 qt., height: 487 mm (19 5/32")

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.11.503

  Product Title: Waste Bin Pull-Out, KV Bottom Mount, Single, Undermount Slide with Soft-Close, Frosted nickel, 35 qt., height: 487 mm (19 5/32")

  Category: Waste Bin Pull-Out, KV Bottom Mount, Single, Undermount Slide with Soft-Close,

  Item Details …

  - Door brackets are reversible to adapt from standard width opening up to door sizes 3" wider

  - If using lid, add 3/4" to height

  - Heavy-duty, under-mount slide

  - Installs in minutes using self-aligning brackets secured with only four screws

  - Color coordinated aluminum side rails provide stability while concealing slide hardware

  - Unique, washable, solid backsplash and floor: Prevents debris from falling through to floor/cabinet

  - Easy to clean

  - Conceals hardware

  - Decorative rail accents can be customized to match countertops or cabinetry

  - Suitable for : Soft & silentEco-friendly finish

  - Number of bins : 1.00

  - Width (inch) : 11 13/16"

  - Depth (inch) : 22 7/16"

  - Material/finish : Frame: SteelBin: Plastic

  - Version : Soft & silentEco-friendly finish

  - Load bearing capacity : 100 lbs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Soft-Close Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.32



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.19-3.27.pdf

  Hafele 503.11.503, 503-11-503, 50311503, 503.11


  Specifications/Hafele Catalog - Page# FC3.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Replacement Waste Bin, for KV Pull Out Units
  • Optional Waste Bin Lid, for KV Replacement Waste Bins
