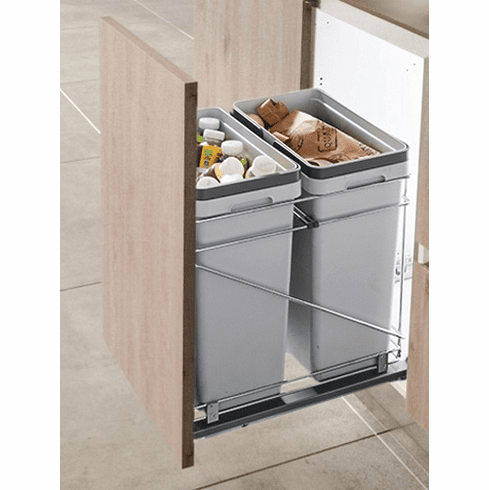

Hafele 503.00.522 Waste Bin Pull-Out, Salice, Double for 18" opening, model QPAM18228C

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.00.522

  Product Title: Waste Bin Pull-Out, Salice, Double, for 18" opening, model QPAM18228C

  Category: Waste Bin Pull-Out, Salice, Double,

  Item Details …

  - Waste bins feature integrated handles for easy removal

  - Bottom or side mount

  - Full extension

  - Easy installation with 4 screws

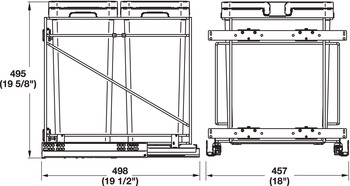

  - For internal cabinet height : 495.00 mm

  - For internal cabinet depth : ?498 mm

  - Number of bins : 2.00

  - Depth (inch) : 19 5/8"

  - Height (inch) : 19 1/2"

  - Material/finish : Steel / Plastic

  - Area of application : Can be used with hinged door or with door attached

  - Version : Soft close

  - Load bearing capacity : 34.00 kg

  - Load bearing capacity : 75 lbs

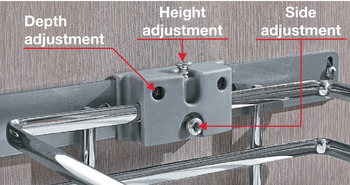

  - Further adjustment facility : Door-mount bracket patented system features 3 way adjustability for alignment of the cabinet door: height: (± 2 mm), side (± 3 mm), depth (± 4 mm)Easy installation with 2 screwsSuitable for standard and five piece doorsAdjustment via #2 pozi driver

  - Supplied with:

  - Bins

  - Frame

  - Mounting screws

  - Mounting instructions
