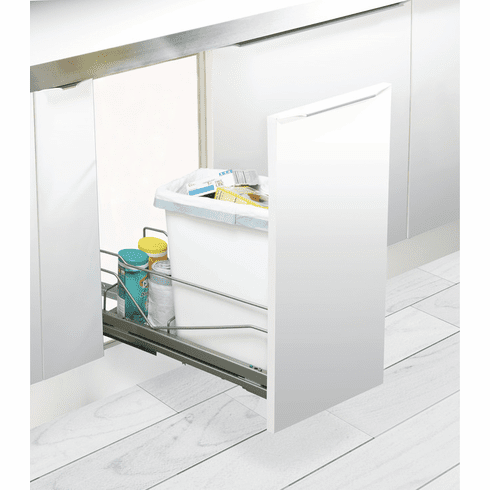

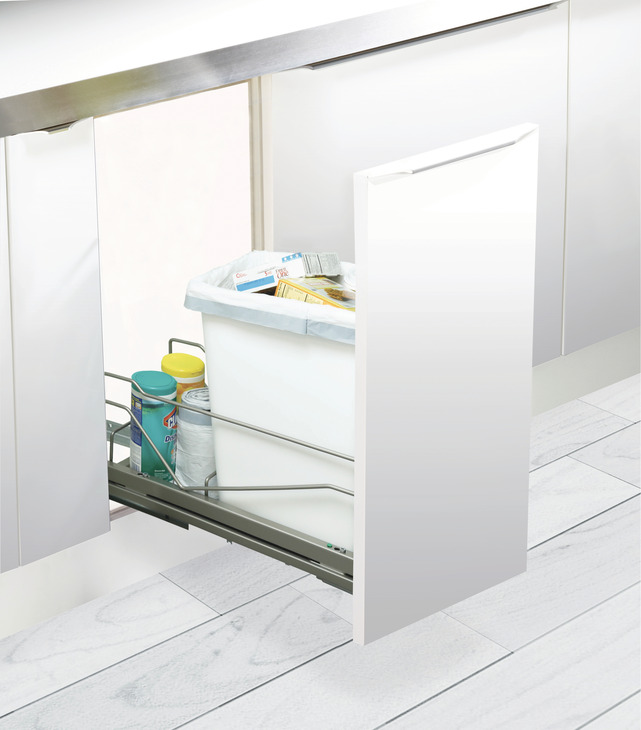

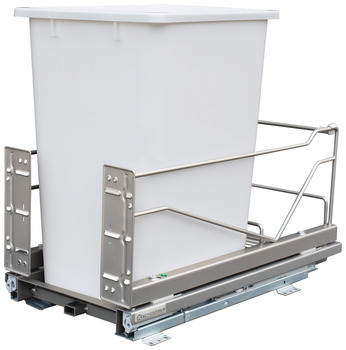

Hafele 502.56.222 Waste Bin Pull-Out, Kessebohmer Single Bottom Mount Chrome, 52 qt

Product Information

• Description

  Manufacturer: Hafele
  Item: 502.56.222

  Product Title: Waste Bin Pull-Out, Kesseböhmer Single Bottom Mount, Chrome, 52 qt

  Category: Waste Bin Pull-Out, Kesseböhmer Single Bottom Mount,

  Item Details …

  - Quick installation with drilling template for floor and door

  - Easy front adjustment in all directions

  - With “V-Rail” reinforced side rails for more stability on full height doors

  - Optional “auto open” feature; a simple nudge gently opens the unit

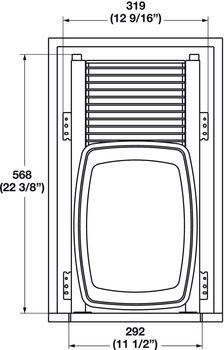

  - For internal cabinet width : 319 mm

  - Installation depth : 568 mm

  - Suitable for : For use in face frame for frameless cabinets

  - Installation depth : 568.00 mm

  - Number of bins : 1.00

  - Width (inch) : 11 1/2"

  - Depth (inch) : 22 3/8"

  - Height (inch) : 10"

  - Material/finish : Frame: Steel, powder-coated; Bin: Plastic

  - Area of application : For cabinets with overlay or inset doors

  - Version : Soft & silentMinimum height of opening: 489 mm (19 1/4") for 36 qt and 610 mm (24") for 52 qtMinimum width of opening:Face frame: 292 mm (11 1/2")Frameless: 319 mm (12 9/16")Actual width of sliding unit: 283 mm (11 1/8")

  - Load bearing capacity : 100 lbs

  - For internal cabinet width min. : 319.00 mm

  - For internal cabinet width max. : 319.00 mm

  - Supplied with:

  - 1 - 52 qt. bin

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Kesse Waste Bin Single Mounting Instructions

  Double Waste Bin Drawing

  Mounting Guideline Waste Bin Pull-Out

  Installing the Kesseböhmer Double Waste Bin

  Kesse Product Information



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Push to Open Kit, For Kesseböhmer Bottom Mount Pull-Out Waste Bins
  • Replacement Waste Bin, for Kesseböhmer Wire and Wood Framed Waste Pull-Out Units
  • Electronic Waste Bin Auto Open Kit, for Kesseböhmer Pull-Out Units
