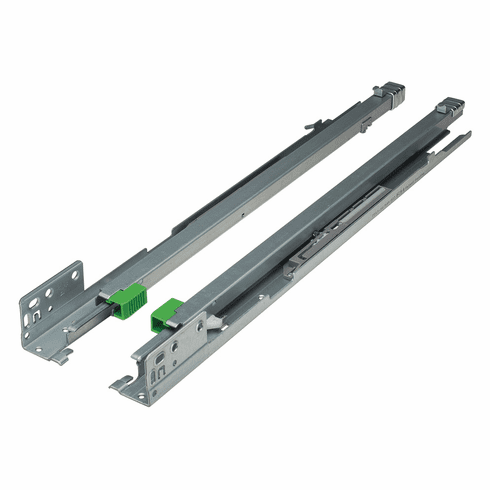

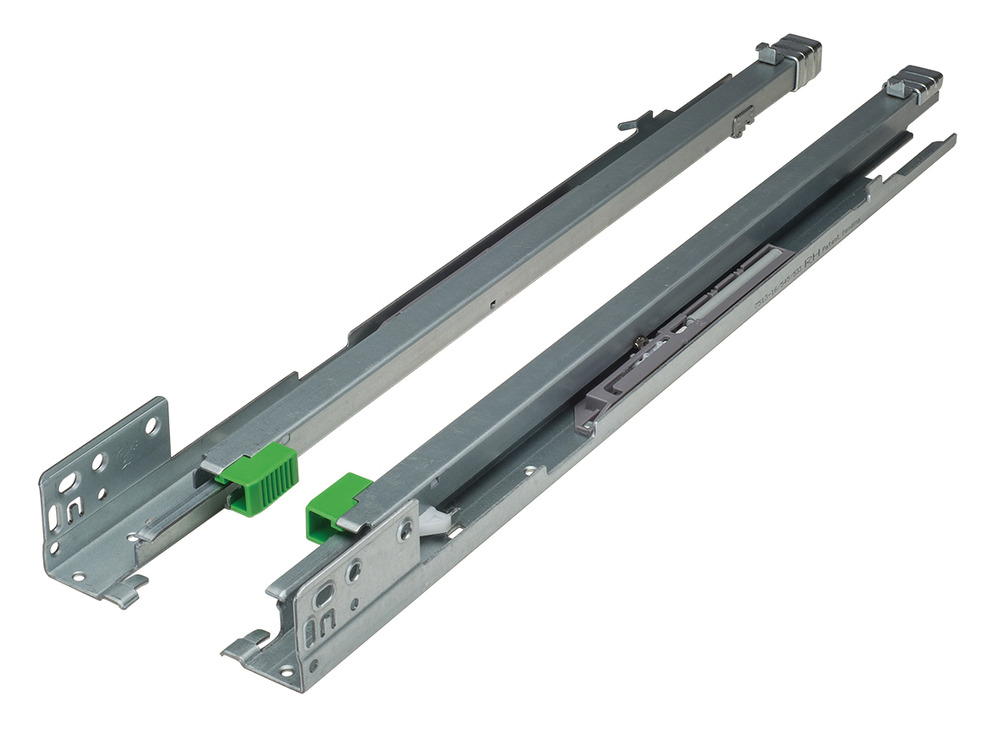

Hafele 433.30.113 Grass Maxcess Undermount Slide, Full Access, 75 lbs. 12" length, 200 count

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.30.113

  Product Title: Grass Maxcess Undermount Slide, Full Access, 75 lbs., 18" length, 200 count

  Category: Grass Maxcess Undermount Slide, Full Access, 75 lbs.,

  Item Details �

  - Integrated soft close liquid damper

  - Self latching front locking devices have easy release levers for drawer removal

  - Front locking device is height adjustable 2.5 mm (3/32”)

  - Meets or exceeds ANSI/BHMA Grade 1 testing requirements

  - Model series : Grass Maxcess

  - Comfort functions opening/closing : Soft close fluid damped

  - Load bearing capacity : 35.00 kg

  - Load bearing capacity : 75 lbs

  - Adjustment facility : Height adjustment + 2.5 mm

  - Material : Steel

  - Color/finish : Zinc plated

  - Mounting : Face FrameUndermount

  - Installation : Face FrameUndermount

• Data Sheet

  Detailed Data Sheet

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Rear Mounting Bracket, for Grass Dynapro/Elite Plus Concealed Undermount Slides (choose one):


  • Model #7951.VE300, Standard Model #7951.VE300, Narrow

    433.19.051 433.19.057

    Click to order Click to order



  Front Locking Device, for Grass Elite Plus and Grass Maxcess Concealed Undermount Slides (choose one):


  • Right, no flange Left, no flange Right with flange Left with flange Pair (Left/Right), no flange Pair (Left/Right), with flange

    433.30.000 433.30.001 433.30.002 433.30.003 433.30.006 433.30.007

    Click to order Click to order Click to order Click to order Click to order Click to order
