Hafele 433.25.133 Grass Elite Plus 19 Slide, Full Extension, 75 lbs Drawer length: (18") 457 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.25.133

  Product Title: Grass Elite Plus 19 Slide, Full Extension, 75 lbs, Drawer length: (18") 457 mm

  Category: Grass Elite Plus 19 Slide, Full Extension, 75 lbs,

  Item Details �

  - Exceeds ANSI/BHMA Grade 1 testing

  - Model : Grass Elite Plus 19

  - Model series : Grass Elite Plus 19

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Soft close air damped

  - Load bearing capacity : 34.00 kg

  - Load bearing capacity : 75 lbs

  - Adjustment facility : Height adjustment + 2.5 mm

  - Material : Steel

  - Color/finish : Zinc

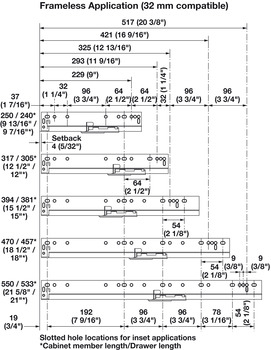

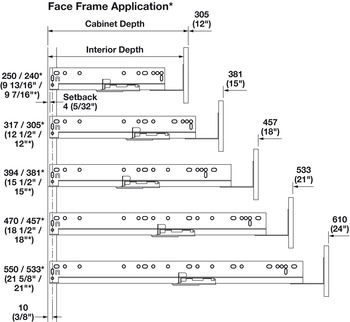

  - Mounting : Face Frame or Frameless

  - Installation : Face Frame or Frameless

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.72



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Front Locking Device, for Grass Elite Plus and Grass Maxcess Concealed Undermount Slides (choose one):


  • Right, no flange Left, no flange Right with flange Left with flange Pair (Left/Right), no flange Pair (Left/Right), with flange

    433.30.000 433.30.001 433.30.002 433.30.003 433.30.006 433.30.007

    Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Rear Mounting Bracket, for Grass Dynapro/Elite Plus Concealed Undermount Slides
  • Drilling Template, for Grass Elite Plus Concealed Undermount Slides
