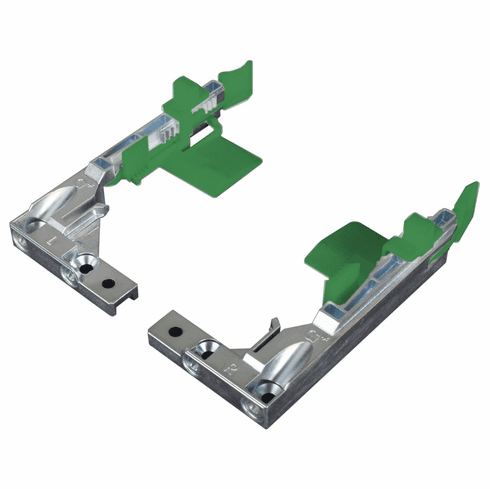

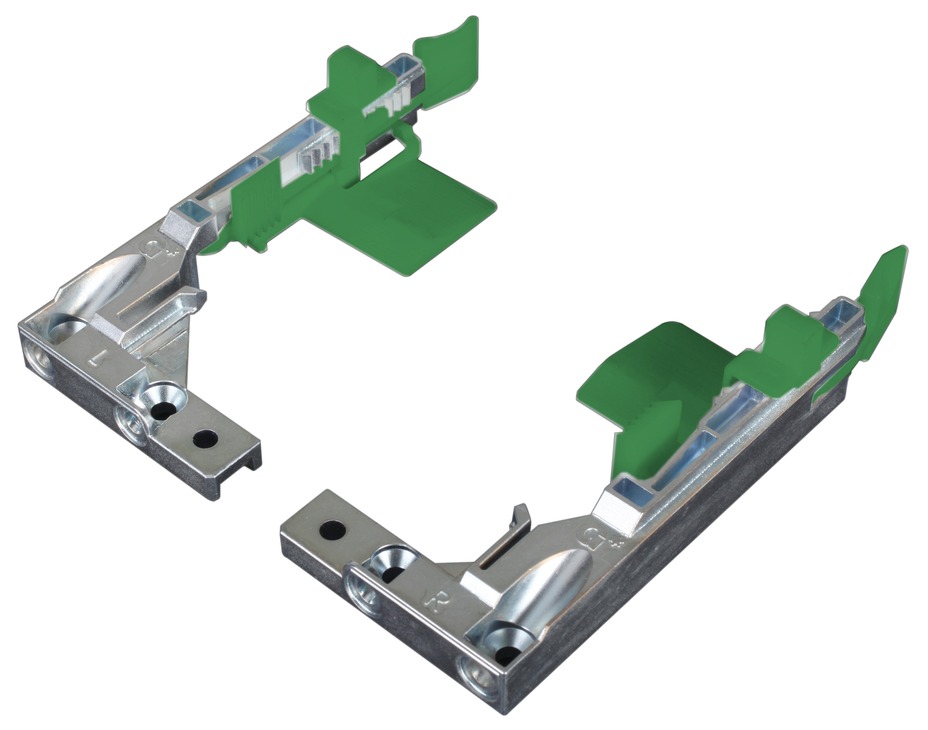

Hafele 433.23.001 Narrow Front Locking Device, For Grass Dynapro Slides Right Hand

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.23.001

  Product Title: Narrow Front Locking Device, For Grass Dynapro Slides, Right Hand; Model F134100699233, 200 pcs/box

  Category: Narrow Front Locking Device, For Grass Dynapro Slides,

  Item Details …

  - Pre-drilling recommended

  - Area of application : For narrow drawers

  - Suitable for : Minimum inside drawer width 195 mm (3 3/4�)

  - Material : Steel

  - Color/finish : Zinc plated

  - For internal drawer width : 195.00 mm

  - Supplied with:

  - 200 pcs/box

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.69



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.32-8.37.pdf

  Hafele 433.23.001, 433-23-001, 43323001, 433.23


  Specifications/Hafele Catalog - Page# FC8.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
