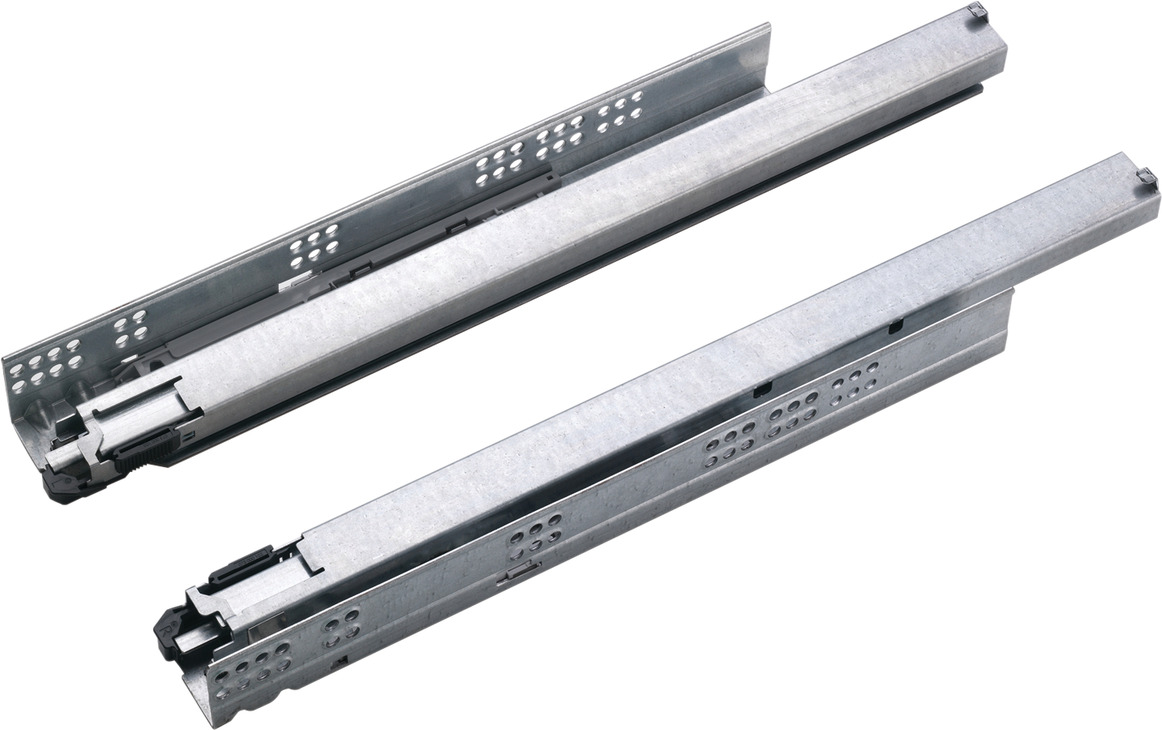

Hafele 433.20.479 Grass Heavy Duty 3D Dynapro 16 Slide, Full Extension, 132 lbs 30" length, model F130101395203

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.20.479

  Product Title: Grass Heavy Duty 3D Dynapro 16 Slide, Full Extension, 132 lbs, 30" length, model F130101395203

  Category: Grass Heavy Duty 3D Dynapro 16 Slide, Full Extension, 132 lbs,

  Item Details …

  - 3-D adjustable version adds tilt adjustment +4 mm (11/64�)

  - Slide-on mounting

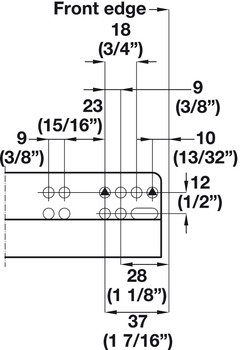

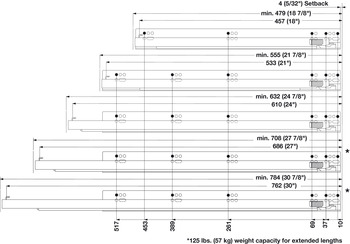

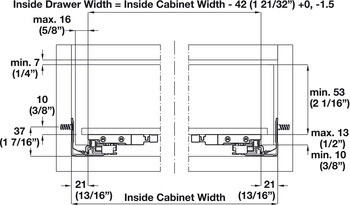

  - In drawings, X represents installation length

  - Integrated soft close liquid dampening provides sleek, smooth closing

  - Fully synchronized runner for the ultimate in smooth silent operation

  - Continuous self-locking of drawer when pushed onto the drawer

  - Slide-on mounting

  - Model series : Grass Dynapro 16 3D

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Soft close fluid damped

  - Load bearing capacity : 60.00 kg

  - Load bearing capacity : 100 lbs

  - Adjustment facility : Height adjustment + 3.5 mmSide adjustment ± 1.5 mmTilt adjustment + 4 mm

  - Material : Steel

  - Color/finish : Zinc

  - Order reference

  - Front locking devices must be ordered separately


  Additional Information …

  Requires R/L front locking device and R/L rear adjustment adapter
