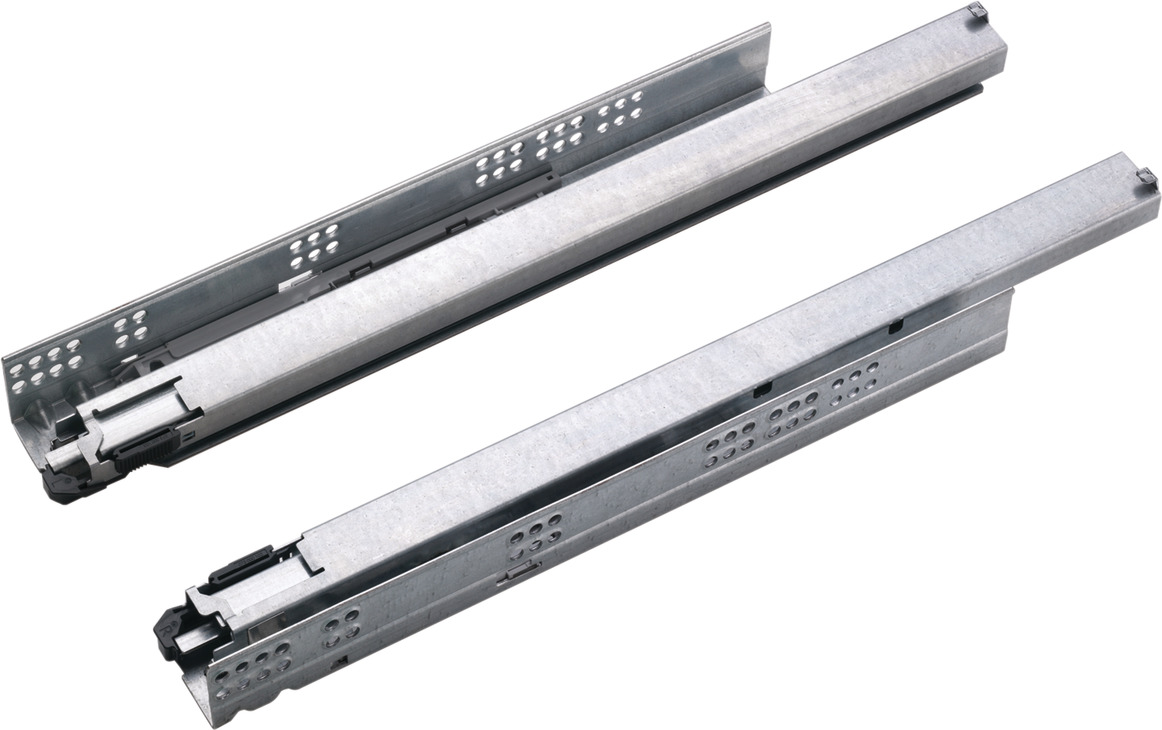

Hafele 433.19.547 Grass Dynapro 19 Full Extension Slide, 100 lbs

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.19.547

  Product Title: Grass Dynapro 19 Full Extension Slide, 100 lbs, 2D adjustment, 18" length

  Category: Grass Dynapro 19 Full Extension Slide, 100 lbs,

  Item Details …

  - Integrated soft close liquid damping provides sleek, smooth closing

  - Fully synchronized runner for the ultimate in smooth silent operation

  - Continuous self-locking of drawer when pushed onto the drawer

  - Slide-on mounting

  - Meets or exceeds BHMA Grade 1 testing requirements

  - 3-D version adds tilt adjustment +4 mm (11/64�)

  - Model series : Grass Dynapro - 19

  - Features : 2-D

  - Comfort functions opening/closing : Soft close fluid damped

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Adjustment facility : Height adjustment + 3.5 mmSide adjustment ± 1.5 mmTilt adjustment + 4 mmDepth adjustment + 3 mm

  - Material : Steel

  - Color/finish : Zinc-plated

  - Order reference

  - Front locking devices must be ordered separately and 3-D version also requires R/L rear adjustment adapter


  Additional Information …

  All items require R/L front locking device; 3-D version also requires R/L rear adjustment adapter.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.66



• Specifications

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Front Locking Device, For Grass Dynapro Slides, 2-D (choose one):


  • Pair (Left/Right) Left; Model F134125000633, 200 pcs/box Right; Model F134125001633, 200 pcs/box

    433.19.036 433.19.043 433.19.044

    Click to order Click to order Click to order



  Adjustment Adapter, For Grass Dynapro 3D Slides (choose one):


  • Pair (Left/Right) Left; Model F134125002233 Right; Model F134125003233

    433.19.029 433.19.041 433.19.042

    Click to order Click to order Click to order



  Optional Accessories:

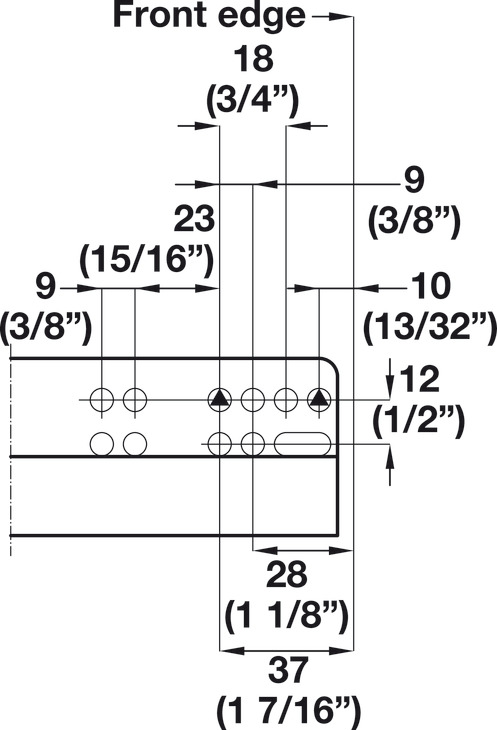

  • Drawer Drilling Template, for Grass Dynapro Slides
  • Narrow Front Locking Device, For Grass Dynapro Slides

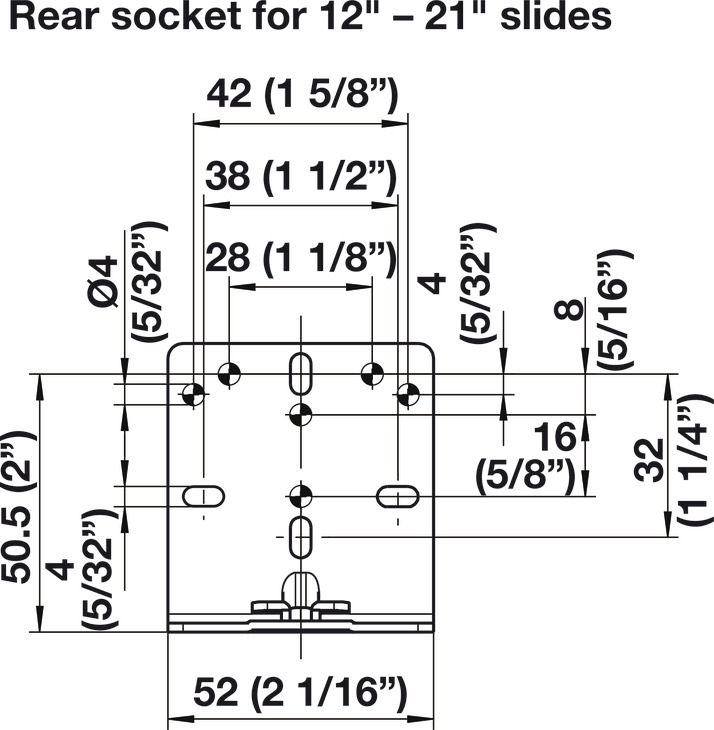

  • Rear Mounting Bracket, for Grass Dynapro/Elite Plus Concealed Undermount Slides
  • Rear Mounting Bracket, for 9" Grass Dynapro Slides
  • Depth Adjuster, for Grass Dynapro Slides
