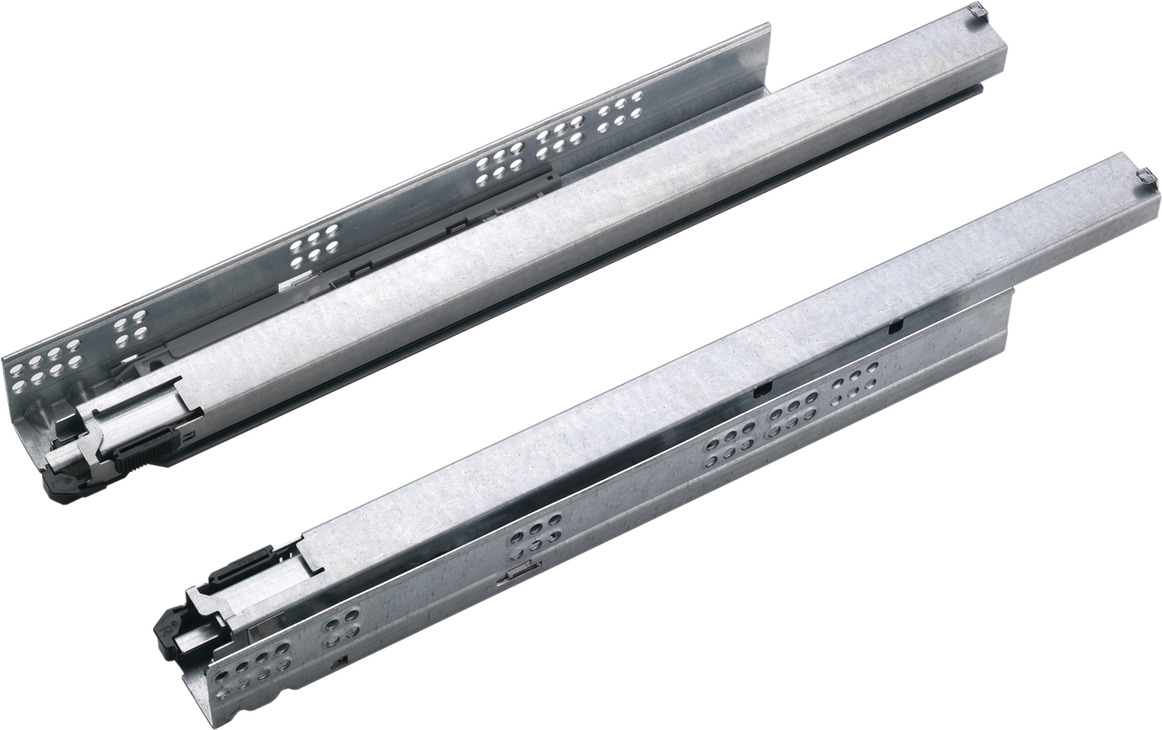

Hafele 433.19.541 Grass Dynapro 19 Full Extension Slide, 100 lbs 3D adjustment, 15" length

Product Information

• Description

  Hafele 433.19.541 Grass Dynapro 19 Full Extension Slide, 100 lbs
  3D adjustment, 15" length

  Additional items required to complete installation:
  Front Locking Device, For Grass Dynapro Slides, 2-D
  Front Locking Device, For Grass Dynapro Slides, 2-D
  Adjustment Adapter, For Grass Dynapro 3D Slides
  Adjustment Adapter, For Grass Dynapro 3D Slides


  Application : Face frame or frameless
  For 48" wide drawers

  Type of closing : Soft & silent

  Adjustment : Features side to side, height, depth and tilt adjustment for perfect drawer alignment
  Tool-less integrated height adjustment +3.5 mm (9/64��)
  Tool-less adjustment adapter for side adjustment �1.5 mm (1/16��) and depth adjustment +3 mm (1/8")
  3-D version adds tilt adjustment +4 mm (11/64")

  Load bearing capacity : Per pair: (100 lbs) 45 kg

  Features : For 3/4" drawer box

  Material : Steel

  Finish : Zinc-plated

  Note :

  All items require R/L front locking device; 3-D version also requires R/L rear adjustment adapter.





  Optional items:
  Narrow Front Locking Device, For Grass Dynapro Slides

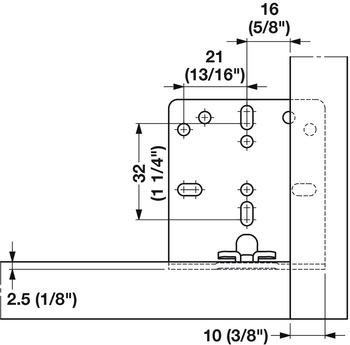

  Rear Mounting Bracket, for Grass Dynapro/Elite Plus Concealed Undermount Slides
  Rear Mounting Bracket , for 9" Grass Dynapro Slides
  Drawer Drilling Template, for Grass Dynapro Slides
  Depth Adjuster, for Grass Dynapro Slides
