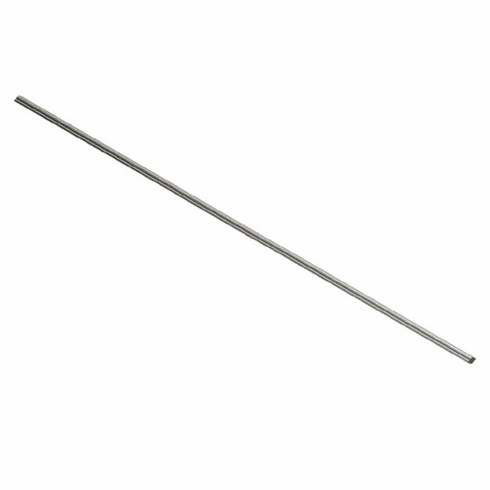

Hafele 433.19.086 Synchronization Rod, for Timpatic Soft-Close Eject Unit for Dynapro Concealed Runners For cabinet width 1200 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.19.086

  Product Title: Synchronization Rod, for Timpatic Soft-Close Eject Unit for Dynapro Concealed Runners, For cabinet width 1200 mm

  Category: Synchronization Rod, for Timpatic Soft-Close Eject Unit for Dynapro Concealed Runners, For cabinet width 1200 mm

  Item Details …

  - For cabinet width : 1,200.00 mm

  - Length : 952.00 mm

  - Suitable for : for Dynapro

  - Version : Can be shortened - cut to size

  - Material : Aluminum

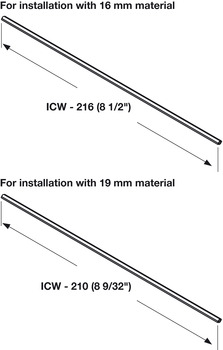

  - Installation : For cutting to size: Internal cabinet width - 216 mm16 mm material ICW - 216; 19 mm material ICW - 210

  - Installation reference : Tipmatic Soft Close does not work with 229 mm (9�) slides

  - Supplied with:

  - 10 sets/pcs.


  Additional Information …

  Tipmatic Soft Close does not work with 229 mm (9�) slides

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.68
