Hafele 433.10.387 Concealed Undermount Slide, Full Extension For drawer material from 13-16 mm (1/2"-5/8"), Length: 533 mm (21")

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.10.387

  Product Title: Concealed Undermount Slide, Full Extension, For drawer material from 13-16 mm (1/2"-5/8"), Length: 533 mm (21")

  Category: Concealed Undermount Slide, Full Extension, For drawer material from 13-16 mm (1/2"-5/8"), Length: 533 mm (21")

  Item Details …

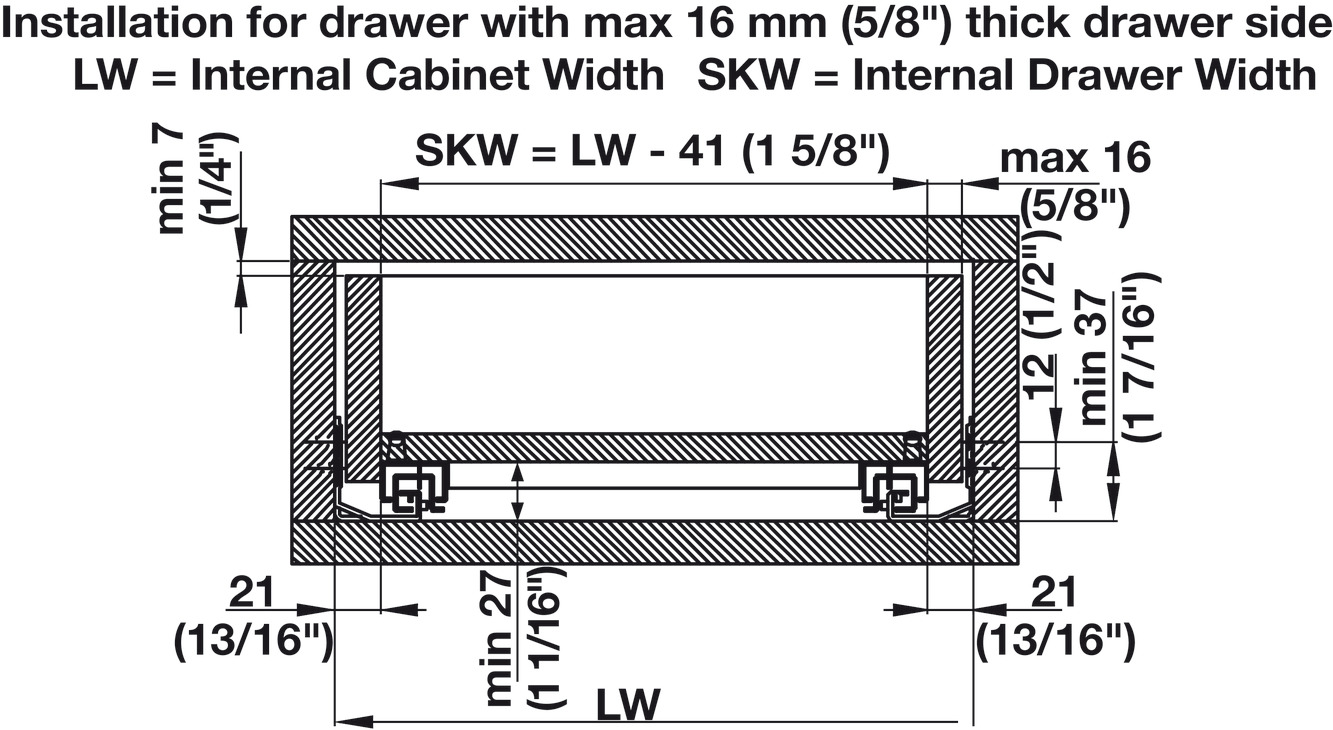

  - For drawer material from 13-16 mm (1/2 - 5/8�)

  - Integrated Soft and Silent mechanism

  - Rear face frame mounting bracket available

  - BHMA grade 1 tested

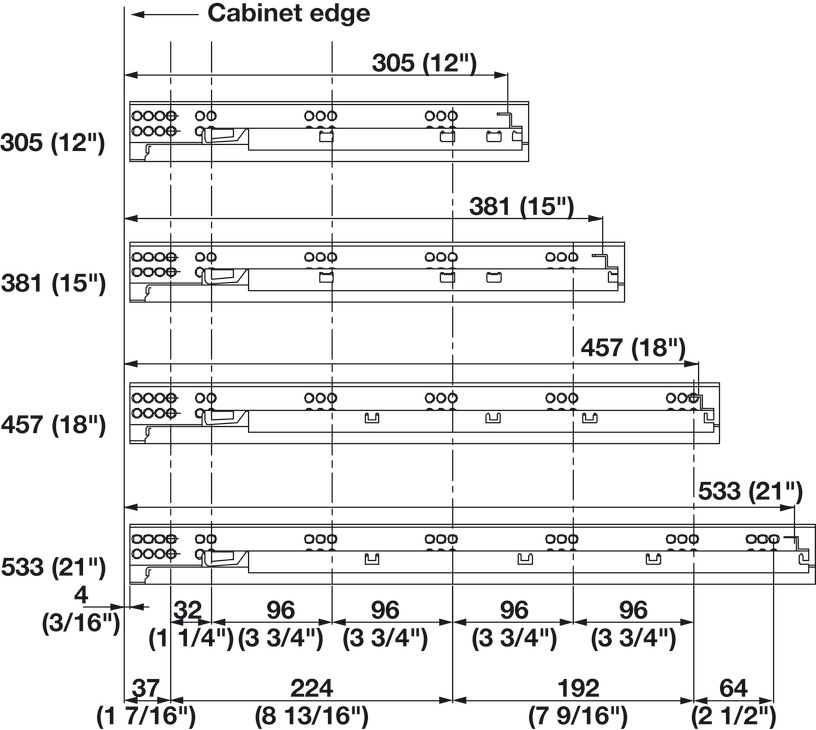

  - Length (inch) : 21"

  - Comfort functions opening/closing : Soft close

  - Load bearing capacity : 35.00 kg

  - Load bearing capacity : 75 lbs

  - Note on load bearing capacity : Per pair

  - Material : Steel

  - Color/finish : Galvanized

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Concealed Undermount Slide Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.76



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Front Locking Clips (choose one):


  • 2D version 3D version

    433.10.026 433.10.027

    Click to order Click to order



  Optional Accessories:



  • Face Frame Inset Brackets, For Concealed Undermounts
