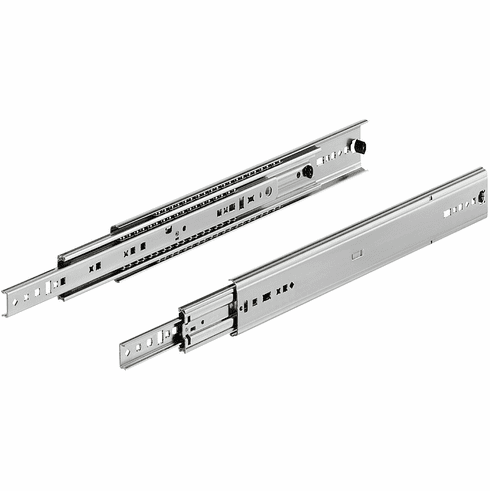

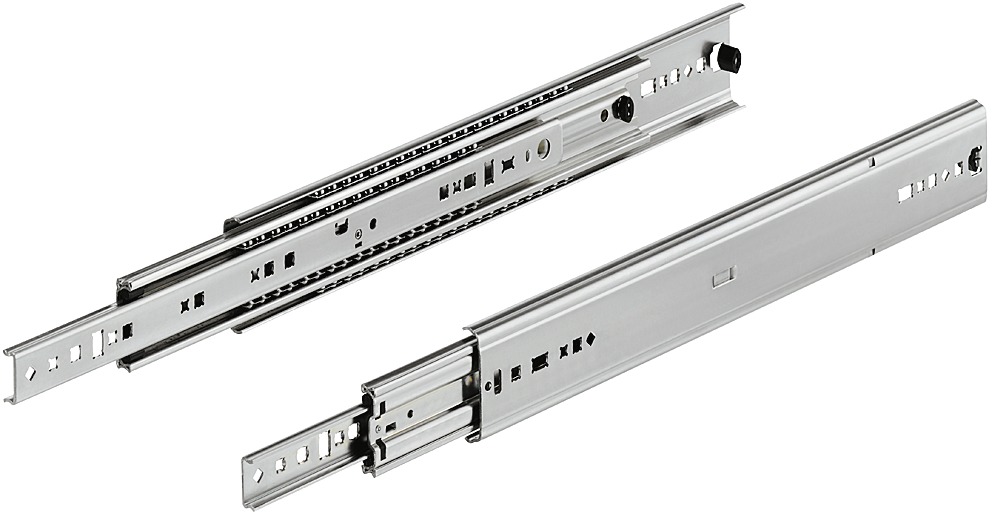

Hafele 432.48.961 Accuride 7950/7957 Heavy Duty Side/Bottom Mounted Slide, Full Extension, 150/350 lbs Weight Capacity 24"

Product Information

• Description

  Hafele 432.48.961 Accuride 7950/7957 Heavy Duty Side/Bottom Mounted Slide, Full Extension, 150/350 lbs Weight Capacity
  24"



  Model series : 7950

  Application : Use as an intermediate load rating for wide drawers in kitchens, store fixtures and institutional storage applications

  Features : Without disconnect
  Bridged ball retainer prevents retainer migration

  Type of pull out : Full extension

  Mounting : Side/bottom mounted

  Drawer width : Maximum drawer width (42") 1067 mm

  Load bearing capacity : Side mount: (350 lbs.) 159 kg/pair
  Flat mount: ( 150 lbs.) 68 kg/pair

  Material : Steel

  A : 115 mm

  C : 481 mm

  D : 508 mm

  E : 381 mm

  T : 546 mm



  Optional items:
  Hospa chipboard screws with countersunk head 5.0 mm
  Varianta special screws with countersunk head 5.0 mm for cabinet rail


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.67-8.67.pdf

  Hafele 432.48.961, 432-48-961, 43248961, 432.48
