Hafele 432.21.976 Drawer Slide 45mm BB, 4502, full extension, zinc plated, 100 lbs, 550mm

Product Information

• Description

  Hafele 432.21.976 Ball Bearing Slide
  Zinc-plated paired

  Note: This product can only be purchased in minimum quantity of

  Additional items required to complete installation:


  Supplied with



  • 5 pair per box
  • Each pair of slides is poly-bagged
  • Pallet quantities available upon request










  Load bearing capacity : (100 lbs) 45 kg kg

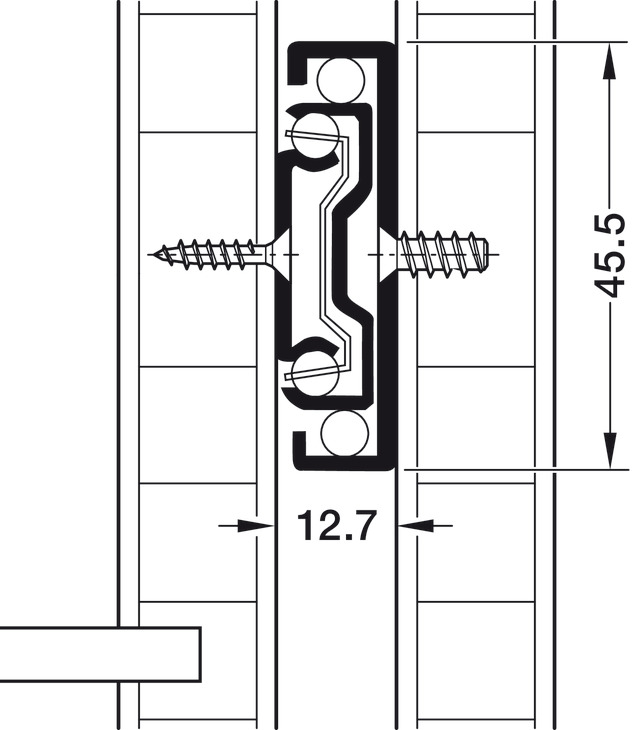

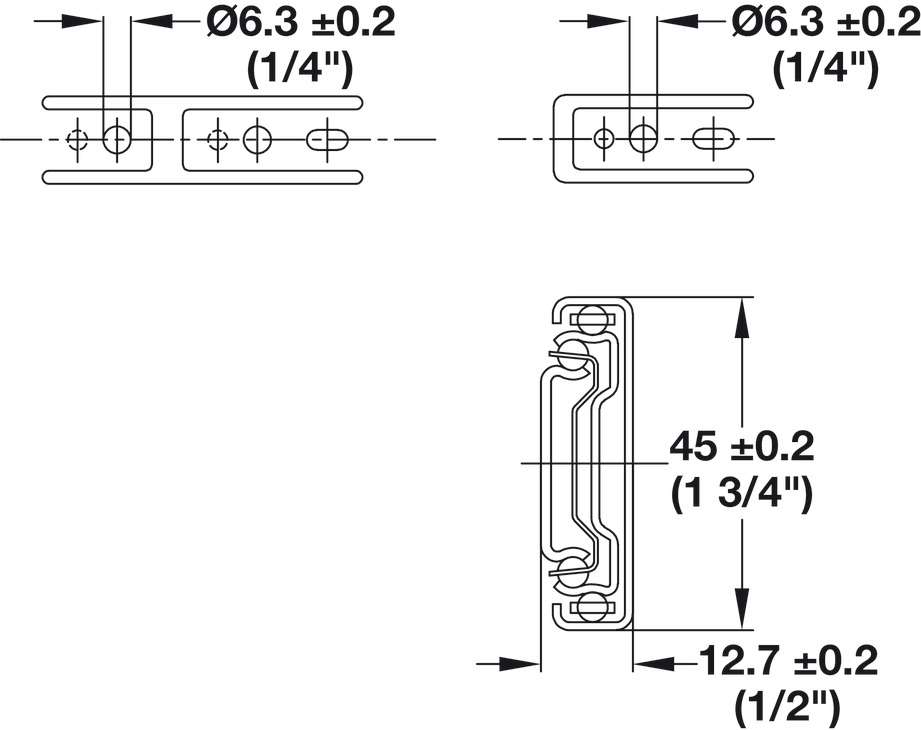

  Height : (1 3/4") 45 mm

  Type of pull out : Full extension

  Material : Steel
