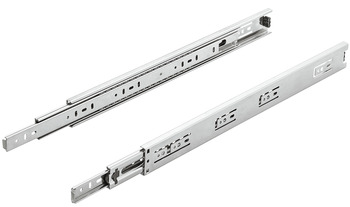

Hafele 432.21.551 Cabinet Member 45mm Slide, full extension, zinc plated, 100lbs, 300mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 432.21.551

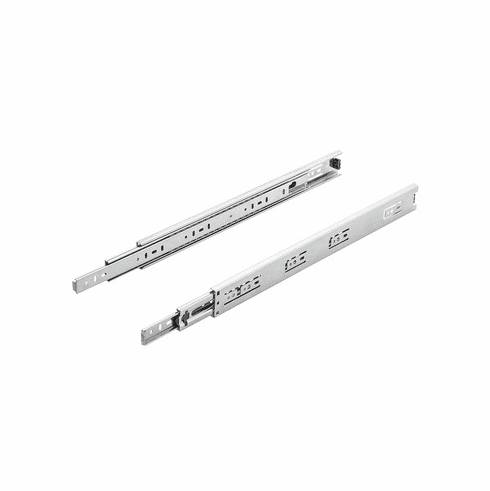

  Product Title: Cabinet Member, Häfele Matrix Runner BB A45, full extension, load bearing capacity up to 45 kg, steel, side mounted, With hold-in device for holding in closed position, Zinc; 300 mm length

  Category: Ball bearing runners, H�fele Matrix Runner BB A45, full extension, steel, side mounted, With hold-in device for holding in closed position

  Item Details �

  - Hold-in detent secures drawer in fully closed position; prevents drawer from creeping open

  - Tested in accordance with ANSI/BHMA and WI

  - Lever disconnect

  - Load bearing capacity : 100 lbs

  - Mounting : Side clearance: (1/2")

  - Type of pull out : Full extension

  - Area of application : For material thickness 1.2/1.2/1.4 mm

  - Material : Steel

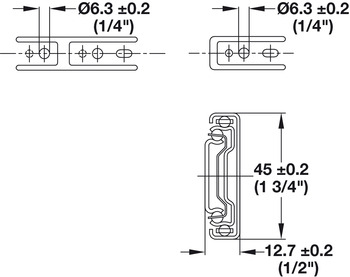

  - Width : 12.70 mm

  - Width (inch) : 1/2"

  - Height : 45.00 mm

  - Height (inch) : 1 3/4"

  - Dim. (W x H) : 12.7 x 45 mm

  - Material thickness : 1.2/1.2/1.4 mm

  - Installation : Side, for screw fixing

  - Order reference

  - Separated members are sold in pieces

  - Supplied with:

  - Drawer Members have 100 pc/box

  - Cabinet Members have 50 pc/box

  - 5 Pairs/box (each polybagged)


  Additional Information �

  Pallet quantities available upon request.
