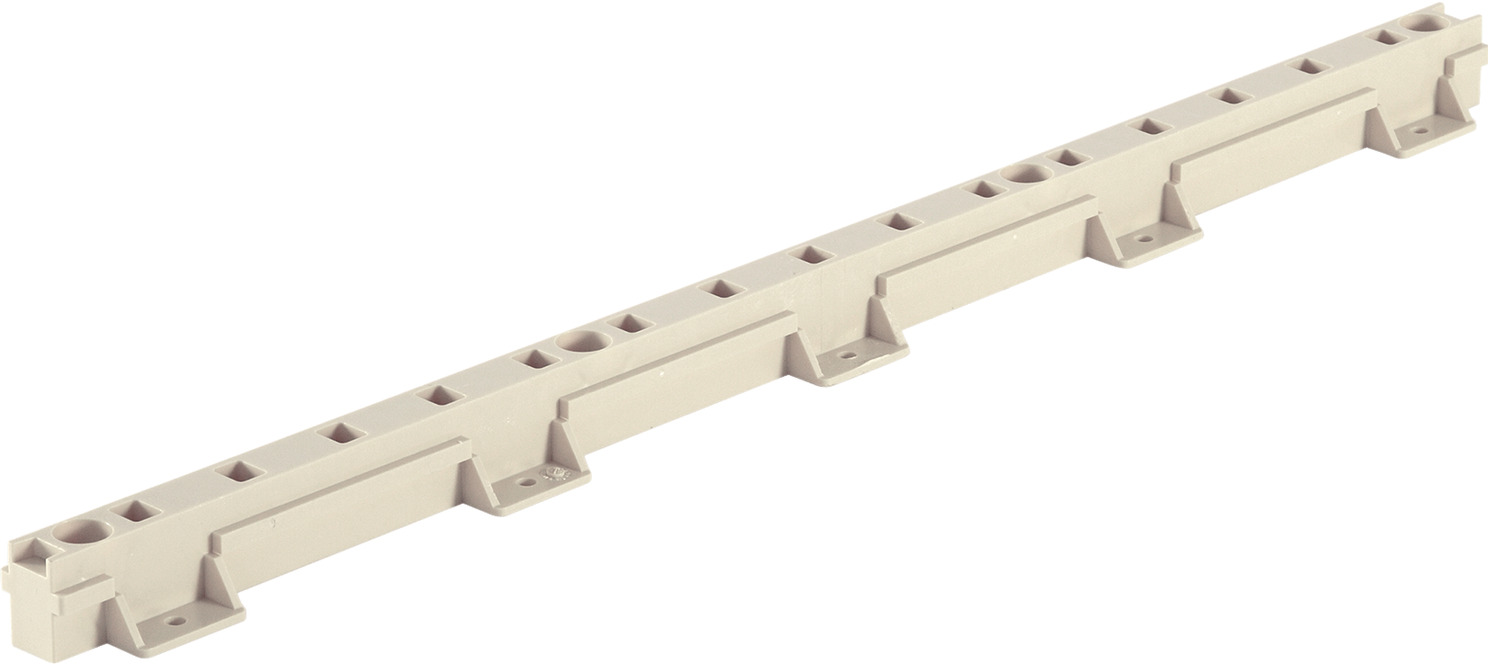

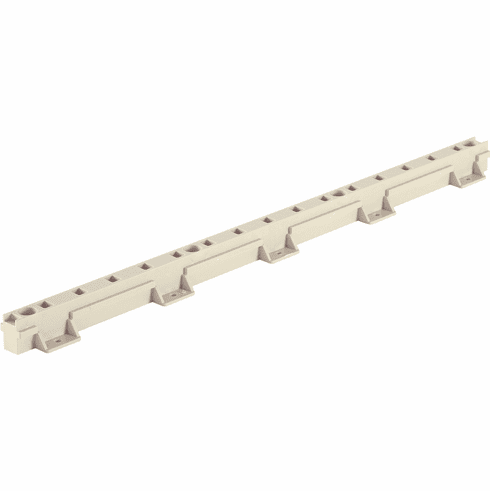

Hafele 431.01.410 Quick Tray Supports, Frameless, 1" Thickness, with 32 mm (1/4") standoff Cream

Product Information

• Description

  Manufacturer: Hafele
  Item: 431.01.410

  Product Title: QuikTRAYâ„¢ Supports, Frameless, 1" Thickness, with 32 mm (1/4") standoff, Cream

  Category: QuikTRAY™ Supports, Frameless, 1" Thickness, with 32 mm (1/4") standoff,

  Item Details …

  - Easy installation

  - Works with epoxy, ball bearing, concealed undermount slides, and Häfele

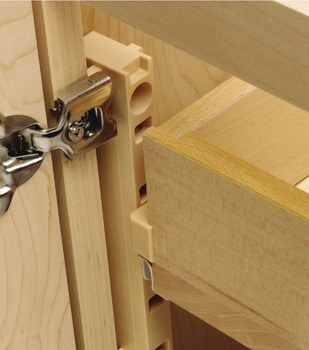

  - Hook dowels attach to slides to hook onto quick tray supports

  - Load bearing capacity : For 20 1/8" supports, the maximum recommendation is 3 drawers at 75 lbs. each

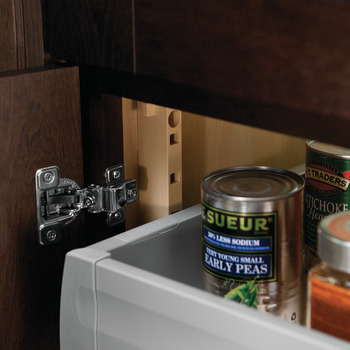

  - Area of application : A great solution for pantry roll-out shelves

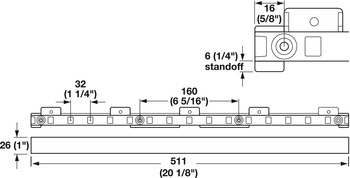

  - Version : With 32mm (1/4") standoff

  - Supplied with:

  - 4 Pilasters

  - 20 Mounting screws

  - 8 Hook dowels with mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.128



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.89-8.90.pdf

  Hafele 431.01.410, 431-01-410, 43101410, 431.01


  Specifications/Hafele Catalog - Page# FC8.84: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
