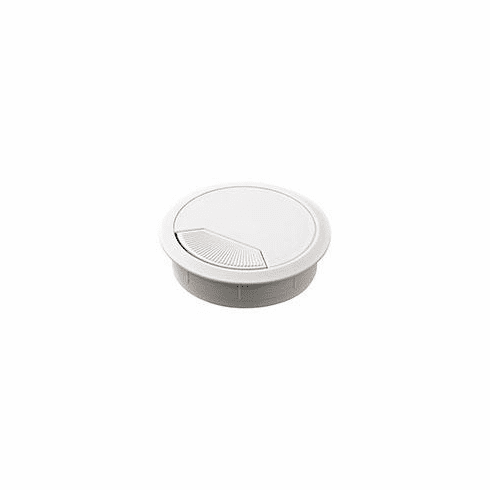

Hafele 429.99.744 Plastic Cable Grommet, Two-Piece, Round with Spring Closure White, 80 mm
Product Information
Description
Manufacturer: Hafele
Item: 429.99.744
Product Title: Plastic Cable Grommet, Two-Piece, Round with Spring Closure, Plastic, with spring loaded, swivelling section in cover, for workplace organization, White, Diameter:80 mm
Category: Plastic Cable Grommet, Two-Piece, Round with Spring Closure, Plastic, with spring loaded, swivelling section in cover, for workplace organization
Item Details …
- With spring-loaded, rotating segment in the cover for leading cable through. Completely removable for leading cables through with pre-mounted plugs.

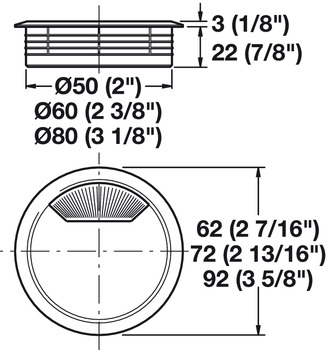

- Installation depth : 22.00 mm
- Version : With spring closure
- Shape : round
- Area of application : For workplace organization
- Material : Plastic
- Installation : for press-fitting or gluingData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_5.32-5.35.pdfHafele 429.99.744, 429-99-744, 42999744, 429.99
Specifications/Hafele Catalog - Page# FC5.55:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
