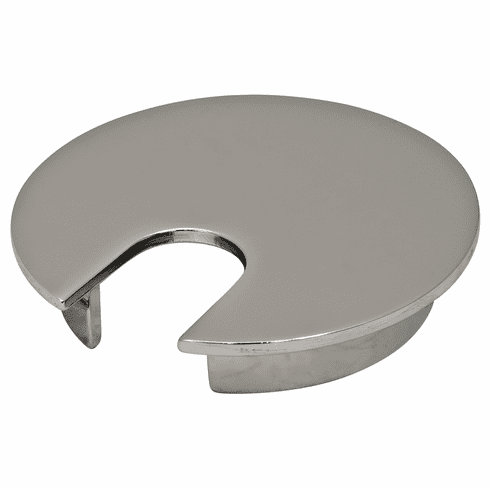

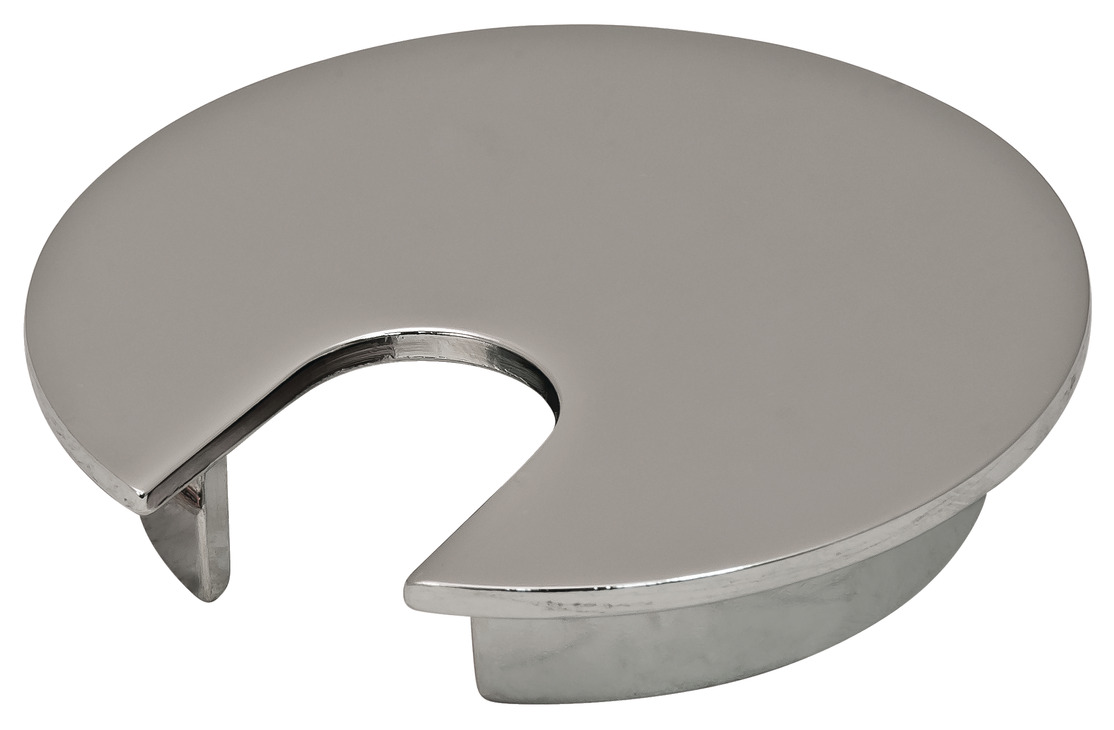

Hafele 429.94.258 Cable Grommet, One-Piece, Round, 63 mm Polished chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 429.94.258

  Product Title: Cable Grommet, One-Piece, Round, Diameter:63 mm, For workplace organization, Polished chrome

  Category: Cable outlet, One-Piece, Round, Ø63 mm, For workplace organization

  Item Details …

  - Metal grommets are an elegant upgrade from standard plastic grommets

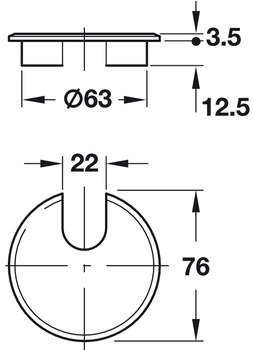

  - For drill hole Diameter: : 63.00 mm

  - Installation depth : 12.50 mm

  - Drill hole Diameter: : 2 1/2"

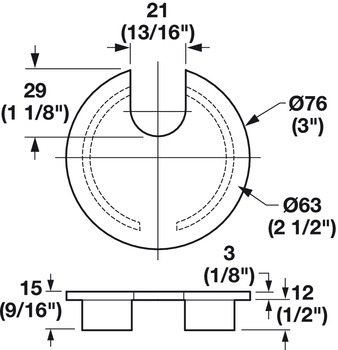

  - Version : Opening: 21 x 29 mm (13/16 x 1 1/8�)

  - Shape : round

  - Area of application : With straight edge, they can be recessed into top for flush applications

  - Material : Zinc alloy

  - Installation : For press-fitting or gluing in Diameter:63 mm (2 1/2�) holes

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 5.22



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_5.32-5.35.pdf

  Hafele 429.94.258, 429-94-258, 42994258, 429.94


  Specifications/Hafele Catalog - Page# FC5.57: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Office Organization Catalog Return to: All Hafele Catalogs
