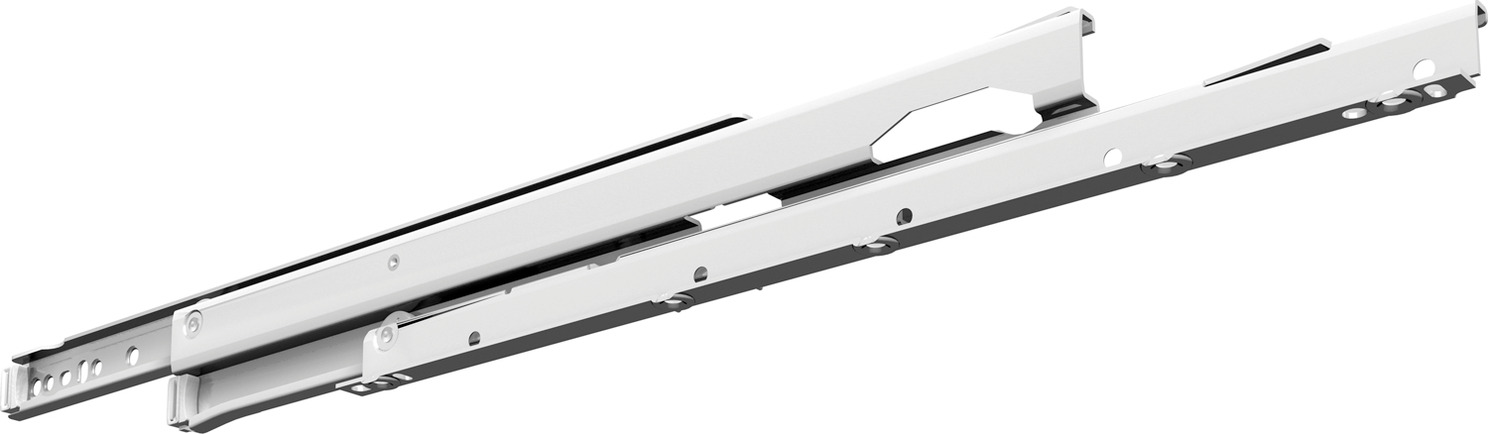

Hafele 423.46.761 Premium Epoxy Coated Bottom Mounted Slide, Full Extension, Self-Closing, 150 lbs Weight Capacity 24"

Product Information

• Description

  Manufacturer: Hafele
  Item: 423.46.761

  Product Title: Premium Epoxy Coated Bottom Mounted Slide, Full Extension, Self-Closing, 150 lbs Weight Capacity, 24"

  Category: Premium Epoxy Coated Bottom Mounted Slide, Full Extension, Self-Closing, 150 lbs Weight Capacity,

  Item Details �

  - Extremely low noise generation provided by particularly accurate guidance and integrated buffer

  - Double Captive

  - Self-closing

  - Hight lateral stability due to specially designed profiles

  - Special cabinet rail shape prevents scraping of the rollers

  - With Soft Close and catch to prevent unintended disengaging

  - Guided by: 2 soft rollers for silent moving, 6 friction bearing mounted polyamide rollers

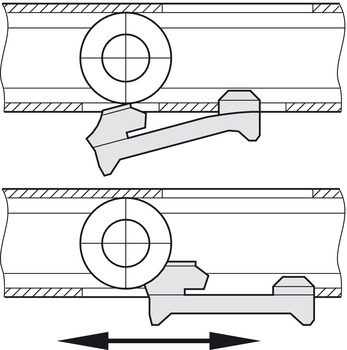

  - Patented middle rail reinforcement, buffer and pull-out prevention clip

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : Per pair: 150 lbs

  - Sliding Extension : Full extension

  - Version : Self closingexcellent side stability provided by automatic guidance on both sides and specially designed profilesintermediate rail with stay closed featurewith soft closing mechanism and catch to prevent unintended removal, guided by: 2 silent moving rollers6 friction bearing mounted polyamide rollers

  - Material : Steel

  - Color/finish : white, RAL 9010, Powder coated, Powder coated

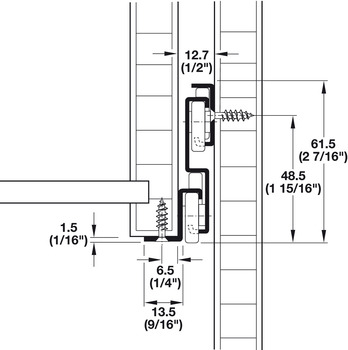

  - Installation : At drawer, surface mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications



  Please contact us for more information about this product
