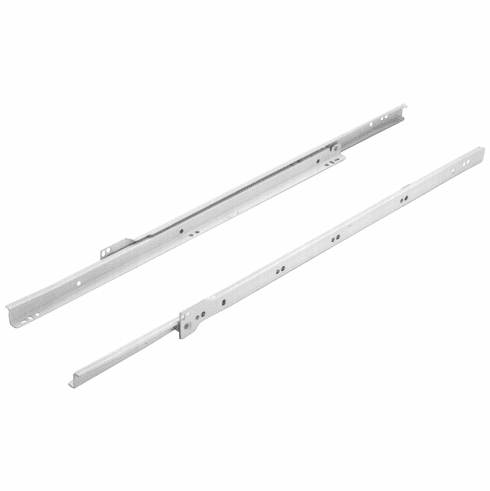

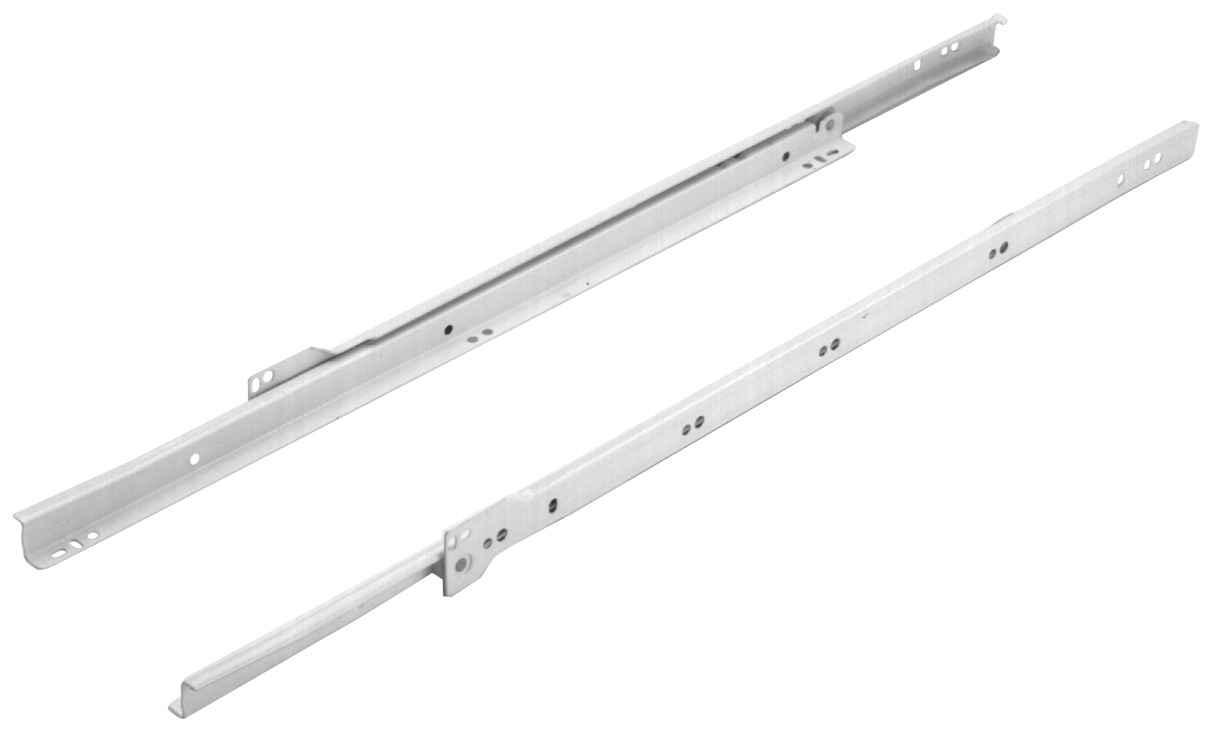

Hafele 423.37.155 Epoxy Coated Bottom Mounted Slide Set, 3/4 Extension, Self-Closing, 100 lbs Weight Capacity brown, 22"

Product Information

• Description

  Hafele 423.37.155 Epoxy Coated Bottom Mounted Slide Set, 3/4 Extension, Self-Closing, 100 lbs Weight Capacity
  brown, 22"



  Load bearing capacity : Dynamic weight capacity: max. 45 kg (100 lbs.)/pair
  Static weight capacity: max. 56 kg (125 lbs./pair)

  Features : 4 friction bearing-mounted rollers with washer bearings

  Type of pull out : 3/4 extension

  Type of closing : Self-closing

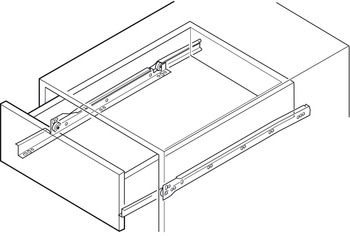

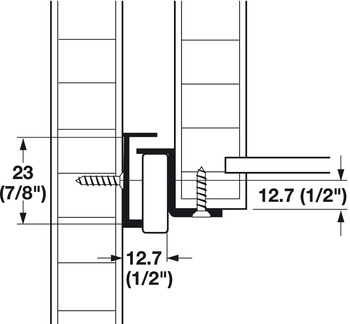

  Mounting : Bottom mounted

  Material : Powder coated steel



  Supplied with :

  Packed in complete sets.

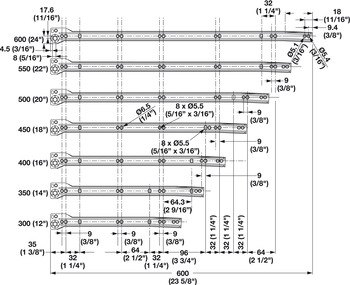

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.85-8.85.pdf

  Hafele 423.37.155, 423-37-155, 42337155, 423.37


  Specifications/Hafele Catalog - Page# FC8.68: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Installation Manuals

  Click: :TCH_Furniture_Cabinetry_Hardw
