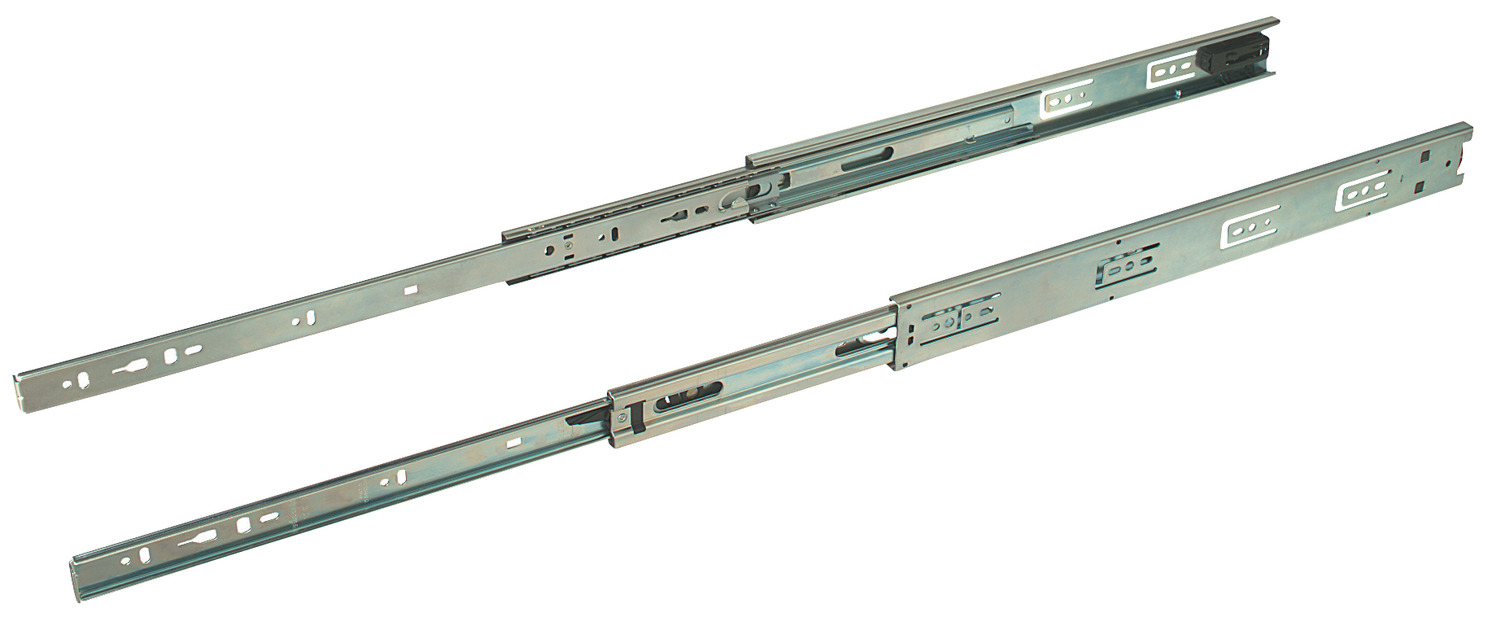

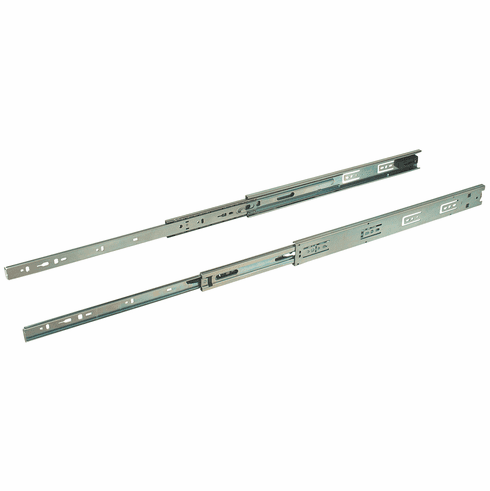

Hafele 422.97.940 Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Zinc, 16"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.97.940

  Product Title: Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, Zinc, 16"

  Category: Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity,

  Item Details …

  - Heavy duty hold-in detent

  - Bounce back is eliminated

  - Keeps drawer front aligned

  - Self-closing with a pull force x 2 of standard 3832SC slide

  - Features low profile for shallw drawers

  - Lever disconnect

  - For optimal performance make drawers 1 1/16� (27 mm) less than cabinet opening

  - Load bearing capacity : 100 lbs

  - Mounting : Side mounted

  - Version : TelescopicHeavy dutyFeatures low profile for shallow drawersLever disconnect

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406 mm (16") wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : For optimal performance make drawers 1 1/16� (27 mm) less than cabinet opening

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

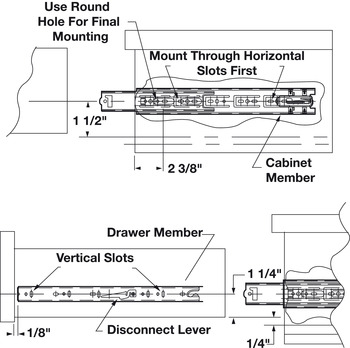

  Installation instructions
