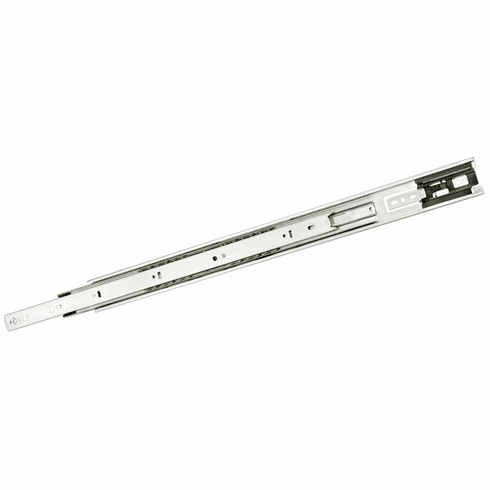

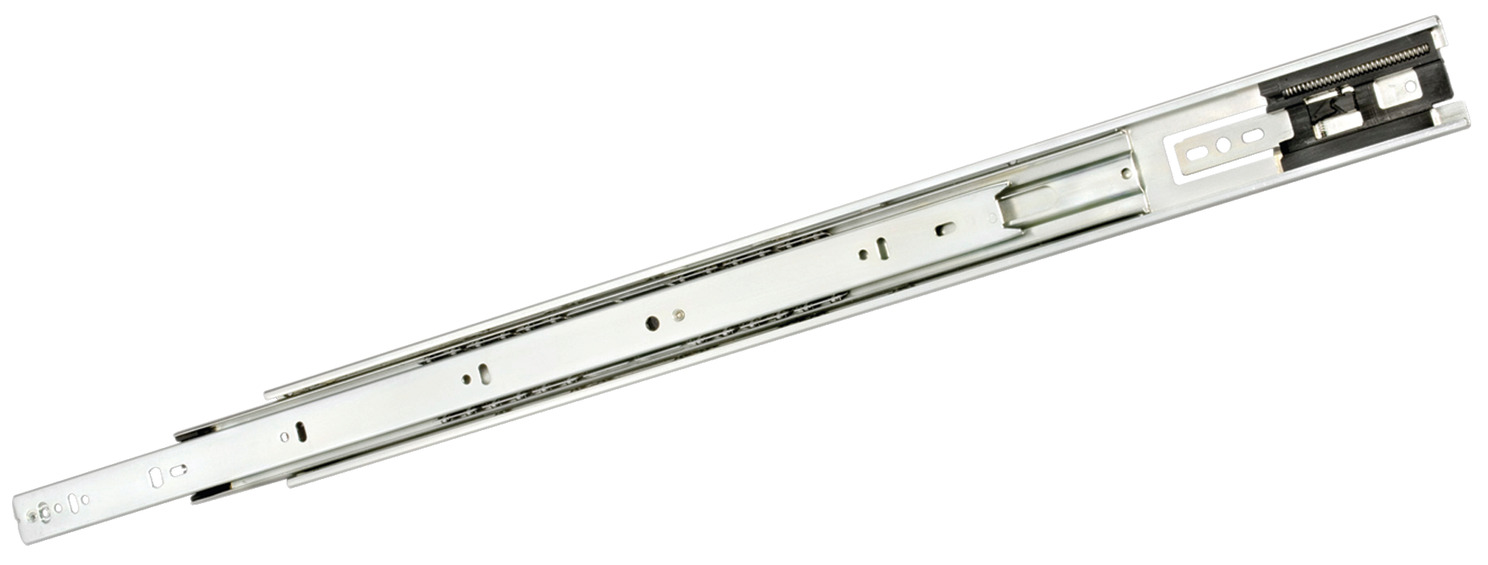

Hafele 422.97.855 Accuride 3832HDTR Heavy Duty Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity 22"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.97.855

  Product Title: Accuride 3832HDTR Heavy Duty Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, 22"

  Category: Accuride 3832HDTR Heavy Duty Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity,

  Item Details …

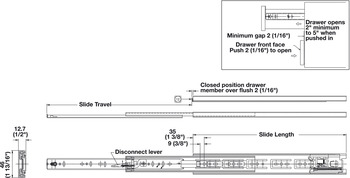

  - Push on the drawer front to open or close the drawer (touch activated)

  - Opening mechanism activated by 1/16" (2mm) travel inward

  - Propels drawers open approximately 2 – 5" (51 - 127mm) from the closed position

  - Lock-in feature helps keep drawers closed

  - Holding capacity is 1.5X stronger than standard 3832TR

  - Elimination of drawer pulls/handles provides an aesthetic, streamlined look

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side mounted

  - Version : TelescopicLever disconnect

  - Color/finish : Zinc-electroplated

  - Type of pull out : Full extension

  - Area of application : For drawers up to 609.6mm (24") wide

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Width : 442.00 mm

  - Installation : For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening

  - Load bearing capacity per pair : 45.00 kg

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.95



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.97.855, 422-97-855, 42297855, 422.97


  Specifications/Hafele Catalog - Page# FC8.44: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
