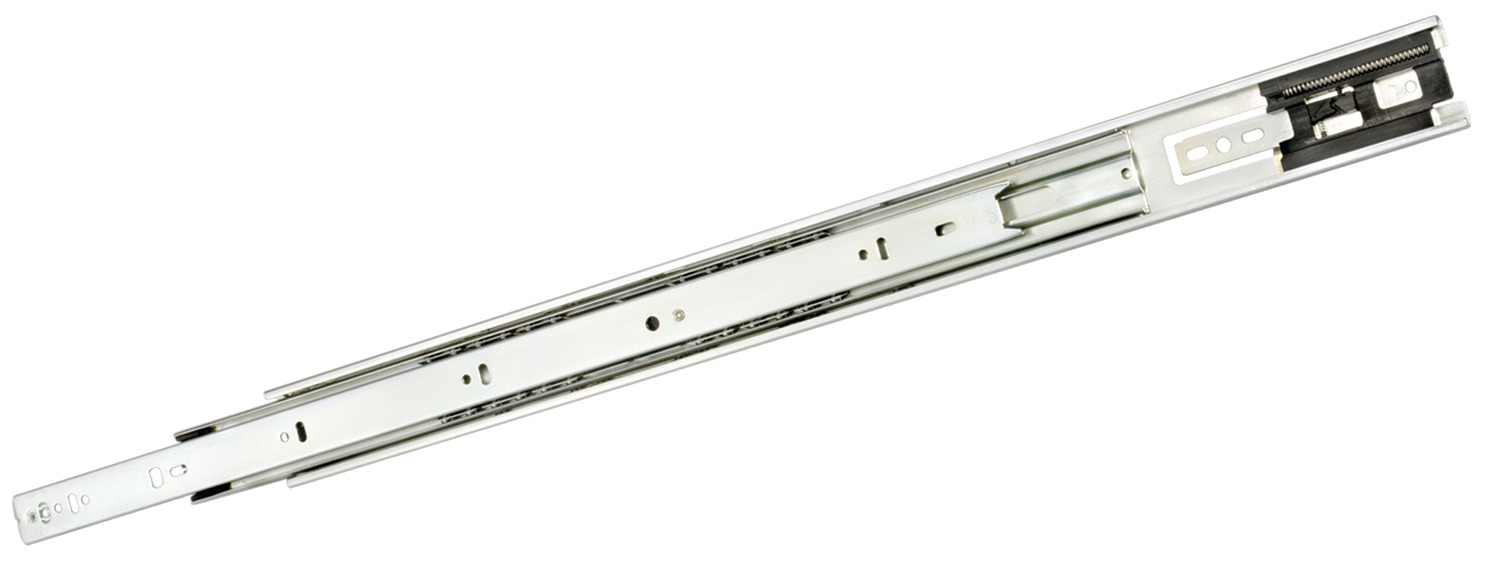

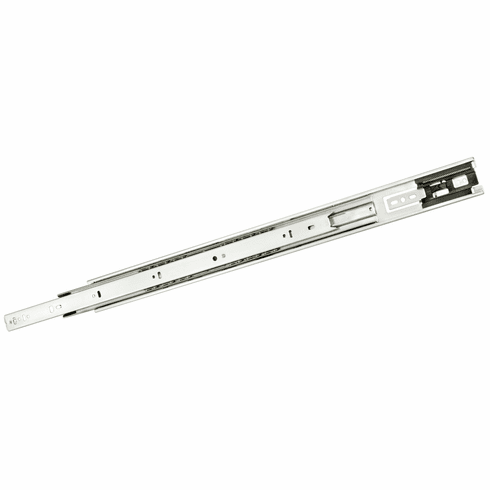

Hafele 422.97.830 Accuride 3832HDTR Heavy Duty Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity 12"

Product Information

• Description

  Hafele 422.97.830 Accuride 3832HDTR Heavy Duty Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity
  12"



  Model series : 3832HDTR

  Mounting : Side mounted

  Load bearing capacity : Per pair: (100 lbs) 45 kg

  Application : For drawers up to 406mm (16") wide

  Features : Telescopic
  Lever disconnect

  Type of pull out : Full extension

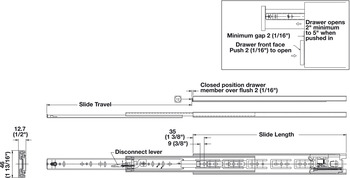

  Installation : For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening

  Material : Steel

  Finish : Zinc-electroplated





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.97.830, 422-97-830, 42297830, 422.97


  Specifications/Hafele Catalog - Page# FC8.44: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
